Operations with EOPF Zarr - Sentinel-1 GRD

Introduction

In this notebook, we will explore additional functionalities that can be applied to Sentinel-1 GRD data. Continuing to access the data through the EOPF Zarr sample services, we will learn how to visualize and carry out basic SAR operations, such as georeferencing and backscatter calibration, using the .zarr format.

What we will learn

• 🗺️ How to georeference a Sentinel-1 GRD image using the correct latitude and longitude coordinates.
• ✳ How to calibrate the amplitude over a Sentinel-1 GRD product.
• ✨ How to calibrate the intensity with dB over a Sentinel-1 GRD product.

Prerequisites

This tutorial uses a re-processed sample dataset from the EOPF Sentinel Zarr Samples Service STAC API: - S1A_IW_GRDH_1SDV_20170508T164830_20170508T164855_016493_01B54C_8604

---

Import libraries

import xarray as xr # Basic package to deal with data arrays
import xarray_sentinel # Handles most basic SAR operations
import matplotlib.pyplot as plt
import numpy as np

---

Georeferencing GRD product

As seen in the previous chapter, plotting a Sentinel-1 GRD item displays an image with azimuth_time and ground_rangecoordinates. While these are indeed valid coordinates for Sentinel-1 products, they are only meaningful within the context of image acquisition.

To compare them with other geospatial datasets or to examine their actual location on Earth, the data needs to be georeferenced using geographic coordinates, such as latitude and longitude.

Opening the product

As usual, the first step is to open the Sentinel-1 GRD product we are going to work with. Using the well known functions open_datatree() and open_dataset(), we open the .zarr product.

url = "https://objectstore.eodc.eu:2222/e05ab01a9d56408d82ac32d69a5aae2a:sample-data/tutorial_data/cpm_b716/S1A_IW_GRDH_1SDV_20170508T164830_20170508T164855_016493_01B54C_8604.zarr"
dt = xr.open_datatree(url, engine='zarr', chunks={})

We can access .groups and explore what is inside the polarisation group, as it corresponds to the information we will be working with.
This is going to help us later opening specific subgroups, such as measurementssubgroup.

dt.S01SIWGRD_20170508T164830_0025_A094_8604_01B54C_VH.groups

('/S01SIWGRD_20170508T164830_0025_A094_8604_01B54C_VH',
 '/S01SIWGRD_20170508T164830_0025_A094_8604_01B54C_VH/conditions',
 '/S01SIWGRD_20170508T164830_0025_A094_8604_01B54C_VH/measurements',
 '/S01SIWGRD_20170508T164830_0025_A094_8604_01B54C_VH/quality',
 '/S01SIWGRD_20170508T164830_0025_A094_8604_01B54C_VH/conditions/antenna_pattern',
 '/S01SIWGRD_20170508T164830_0025_A094_8604_01B54C_VH/conditions/attitude',
 '/S01SIWGRD_20170508T164830_0025_A094_8604_01B54C_VH/conditions/azimuth_fm_rate',
 '/S01SIWGRD_20170508T164830_0025_A094_8604_01B54C_VH/conditions/coordinate_conversion',
 '/S01SIWGRD_20170508T164830_0025_A094_8604_01B54C_VH/conditions/doppler_centroid',
 '/S01SIWGRD_20170508T164830_0025_A094_8604_01B54C_VH/conditions/gcp',
 '/S01SIWGRD_20170508T164830_0025_A094_8604_01B54C_VH/conditions/orbit',
 '/S01SIWGRD_20170508T164830_0025_A094_8604_01B54C_VH/conditions/reference_replica',
 '/S01SIWGRD_20170508T164830_0025_A094_8604_01B54C_VH/conditions/replica',
 '/S01SIWGRD_20170508T164830_0025_A094_8604_01B54C_VH/conditions/terrain_height',
 '/S01SIWGRD_20170508T164830_0025_A094_8604_01B54C_VH/quality/calibration',
 '/S01SIWGRD_20170508T164830_0025_A094_8604_01B54C_VH/quality/noise',
 '/S01SIWGRD_20170508T164830_0025_A094_8604_01B54C_VH/quality/noise_range')

measurements = dt["S01SIWGRD_20170508T164830_0025_A094_8604_01B54C_VH/measurements"].to_dataset()

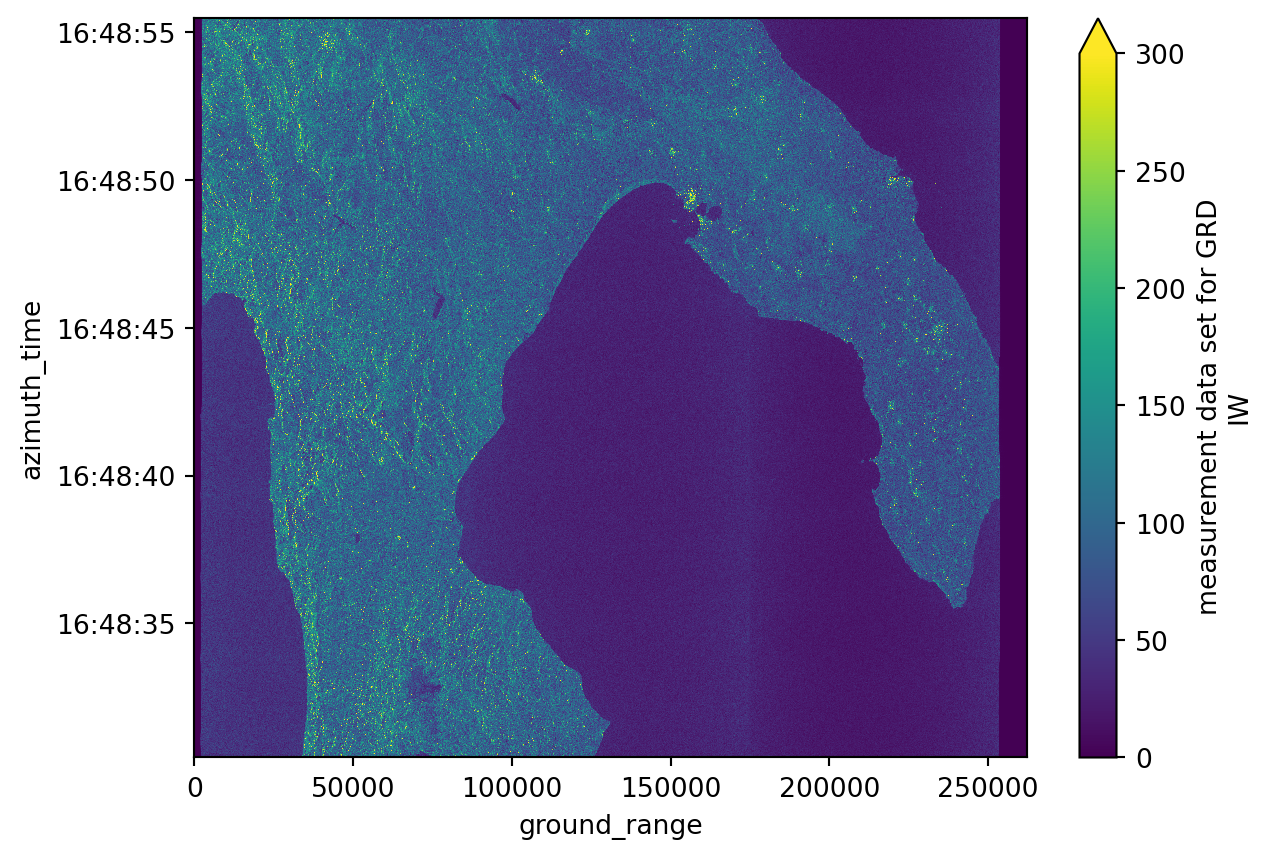

As the measurements.grd array is large to be directly plotted, we need to slice it. Applying the .isel()method is useful in this case.
We observe that the grd product coordinates azimuth_time and ground_range are not stored in geographical coordinates.

grd = measurements.grd.isel(
    azimuth_time=slice(None, None, 10), ground_range=slice(None, None, 10)
)
grd.plot(vmax=300)
plt.show()

Setting the GCP

In order to georeference the image with the correspondent latitude and longitude coordinates, we need to access and use the ground control points stored into the .zarr structure.

These are well known points that contain both the latitude and longitude coordinates but also the azimuth time and ground range coordinates, making it possible to georeference the grd image.

ground_control_point = dt["S01SIWGRD_20170508T164830_0025_A094_8604_01B54C_VH/conditions/gcp"].to_dataset()
ground_control_point

<xarray.Dataset> Size: 12kB
Dimensions:               (azimuth_time: 10, ground_range: 21)
Coordinates:
  * azimuth_time          (azimuth_time) datetime64[ns] 80B 2017-05-08T16:48:...
  * ground_range          (ground_range) float64 168B 0.0 ... 2.624e+05
    line                  (azimuth_time) uint32 40B dask.array<chunksize=(10,), meta=np.ndarray>
    pixel                 (ground_range) uint32 84B dask.array<chunksize=(21,), meta=np.ndarray>
Data variables:
    azimuth_time_gcp      (azimuth_time, ground_range) datetime64[ns] 2kB dask.array<chunksize=(10, 21), meta=np.ndarray>
    elevation_angle       (azimuth_time, ground_range) float64 2kB dask.array<chunksize=(10, 21), meta=np.ndarray>
    height                (azimuth_time, ground_range) float64 2kB dask.array<chunksize=(10, 21), meta=np.ndarray>
    incidence_angle       (azimuth_time, ground_range) float64 2kB dask.array<chunksize=(10, 21), meta=np.ndarray>
    latitude              (azimuth_time, ground_range) float64 2kB dask.array<chunksize=(10, 21), meta=np.ndarray>
    longitude             (azimuth_time, ground_range) float64 2kB dask.array<chunksize=(10, 21), meta=np.ndarray>
    slant_range_time_gcp  (azimuth_time, ground_range) float64 2kB dask.array<chunksize=(10, 21), meta=np.ndarray>

xarray.Dataset

• Dimensions:
  • azimuth_time: 10
  • ground_range: 21
• Coordinates: (4)
  • azimuth_time
    (azimuth_time)
    datetime64[ns]
    2017-05-08T16:48:30.467916 ... 2...

    array(['2017-05-08T16:48:30.467916000', '2017-05-08T16:48:33.469054000',
           '2017-05-08T16:48:36.470192000', '2017-05-08T16:48:39.471330000',
           '2017-05-08T16:48:42.472469000', '2017-05-08T16:48:45.473607000',
           '2017-05-08T16:48:48.474745000', '2017-05-08T16:48:51.475884000',
           '2017-05-08T16:48:54.477022000', '2017-05-08T16:48:55.466919000'],
          dtype='datetime64[ns]')

  • ground_range
    (ground_range)
    float64
    0.0 1.312e+04 ... 2.624e+05

    array([     0.,  13120.,  26240.,  39360.,  52480.,  65600.,  78720.,  91840.,
           104960., 118080., 131200., 144320., 157440., 170560., 183680., 196800.,
           209920., 223040., 236160., 249280., 262380.])

  • line
    (azimuth_time)
    uint32
    dask.array<chunksize=(10,), meta=np.ndarray>

    Array Chunk Bytes 40 B 40 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type uint32 numpy.ndarray

  • pixel
    (ground_range)
    uint32
    dask.array<chunksize=(21,), meta=np.ndarray>

    Array Chunk Bytes 84 B 84 B Shape (21,) (21,) Dask graph 1 chunks in 2 graph layers Data type uint32 numpy.ndarray

• Data variables: (7)
  • azimuth_time_gcp
    (azimuth_time, ground_range)
    datetime64[ns]
    dask.array<chunksize=(10, 21), meta=np.ndarray>

    _eopf_attrs :

    {'coordinates': ['azimuth_time', 'ground_range', 'line', 'pixel'], 'dimensions': ['azimuth_time', 'ground_range']}

    Array Chunk Bytes 1.64 kiB 1.64 kiB Shape (10, 21) (10, 21) Dask graph 1 chunks in 2 graph layers Data type datetime64[ns] numpy.ndarray

  • elevation_angle
    (azimuth_time, ground_range)
    float64
    dask.array<chunksize=(10, 21), meta=np.ndarray>

    _eopf_attrs :

    {'coordinates': ['azimuth_time', 'ground_range', 'line', 'pixel'], 'dimensions': ['azimuth_time', 'ground_range']}

    Array Chunk Bytes 1.64 kiB 1.64 kiB Shape (10, 21) (10, 21) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

  • height
    (azimuth_time, ground_range)
    float64
    dask.array<chunksize=(10, 21), meta=np.ndarray>

    _eopf_attrs :

    {'coordinates': ['azimuth_time', 'ground_range', 'line', 'pixel'], 'dimensions': ['azimuth_time', 'ground_range']}

    Array Chunk Bytes 1.64 kiB 1.64 kiB Shape (10, 21) (10, 21) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

  • incidence_angle
    (azimuth_time, ground_range)
    float64
    dask.array<chunksize=(10, 21), meta=np.ndarray>

    _eopf_attrs :

    {'coordinates': ['azimuth_time', 'ground_range', 'line', 'pixel'], 'dimensions': ['azimuth_time', 'ground_range']}

    Array Chunk Bytes 1.64 kiB 1.64 kiB Shape (10, 21) (10, 21) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

  • latitude
    (azimuth_time, ground_range)
    float64
    dask.array<chunksize=(10, 21), meta=np.ndarray>

    _eopf_attrs :

    {'coordinates': ['azimuth_time', 'ground_range', 'line', 'pixel'], 'dimensions': ['azimuth_time', 'ground_range']}

    Array Chunk Bytes 1.64 kiB 1.64 kiB Shape (10, 21) (10, 21) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

  • longitude
    (azimuth_time, ground_range)
    float64
    dask.array<chunksize=(10, 21), meta=np.ndarray>

    _eopf_attrs :

    {'coordinates': ['azimuth_time', 'ground_range', 'line', 'pixel'], 'dimensions': ['azimuth_time', 'ground_range']}

    Array Chunk Bytes 1.64 kiB 1.64 kiB Shape (10, 21) (10, 21) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

  • slant_range_time_gcp
    (azimuth_time, ground_range)
    float64
    dask.array<chunksize=(10, 21), meta=np.ndarray>

    _eopf_attrs :

    {'coordinates': ['azimuth_time', 'ground_range', 'line', 'pixel'], 'dimensions': ['azimuth_time', 'ground_range']}

    Array Chunk Bytes 1.64 kiB 1.64 kiB Shape (10, 21) (10, 21) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

Since we previously downsampled the grd product, the coordinate grid (azimuth time and ground range) was processed accordingly. To ensure that the ground control points (latitude and longitude arrays) align properly with this modified grid, we need to apply the same downsample interpolation to them.

We can achieve this using the .interp_like() method from xarray. This function interpolates the ground control point data to match the dimensions and coordinates of the grd product, specifically over the current azimuth_time and ground_range.

gcp = ground_control_point.interp_like(grd)

Georeferencing the product

The final step is to assign the corresponding decimated latitude and longitude values (interpolated from the ground control points) to the grd product. This can be done using the .assign_coords() method.

After assigning the coordinates, the grd dataset will include latitude and longitude as new entries in its coordinate system. When plotting the grd image, you can then specify longitude as the x axis and latitude as the y axis. This will display a properly georeferenced image, allowing it to be compared directly with other spatial datasets.

grd = grd.assign_coords({"latitude": gcp.latitude, "longitude": gcp.longitude})
grd

<xarray.DataArray 'grd' (azimuth_time: 1670, ground_range: 2624)> Size: 9MB
dask.array<getitem, shape=(1670, 2624), dtype=uint16, chunksize=(256, 2624), chunktype=numpy.ndarray>
Coordinates:
  * azimuth_time  (azimuth_time) datetime64[ns] 13kB 2017-05-08T16:48:30.4679...
  * ground_range  (ground_range) float64 21kB 0.0 100.0 ... 2.622e+05 2.623e+05
    line          (azimuth_time) float64 13kB dask.array<chunksize=(1670,), meta=np.ndarray>
    pixel         (ground_range) float64 21kB dask.array<chunksize=(2624,), meta=np.ndarray>
    latitude      (azimuth_time, ground_range) float64 35MB dask.array<chunksize=(1670, 2624), meta=np.ndarray>
    longitude     (azimuth_time, ground_range) float64 35MB dask.array<chunksize=(1670, 2624), meta=np.ndarray>
Attributes:
    _eopf_attrs:  {'coordinates': ['azimuth_time', 'line', 'pixel', 'ground_r...
    dtype:        <u2
    long_name:    measurement data set for GRD IW

xarray.DataArray

'grd'

• azimuth_time: 1670
• ground_range: 2624

• dask.array<chunksize=(256, 2624), meta=np.ndarray>

  Array Chunk Bytes 8.36 MiB 1.28 MiB Shape (1670, 2624) (256, 2624) Dask graph 7 chunks in 3 graph layers Data type uint16 numpy.ndarray

• Coordinates: (6)
  • azimuth_time
    (azimuth_time)
    datetime64[ns]
    2017-05-08T16:48:30.467916 ... 2...

    array(['2017-05-08T16:48:30.467916000', '2017-05-08T16:48:30.482891740',
           '2017-05-08T16:48:30.497867480', ..., '2017-05-08T16:48:55.432474797',
           '2017-05-08T16:48:55.447450537', '2017-05-08T16:48:55.462426277'],
          shape=(1670,), dtype='datetime64[ns]')

  • ground_range
    (ground_range)
    float64
    0.0 100.0 ... 2.622e+05 2.623e+05

    array([0.000e+00, 1.000e+02, 2.000e+02, ..., 2.621e+05, 2.622e+05, 2.623e+05],
          shape=(2624,))

  • line
    (azimuth_time)
    float64
    dask.array<chunksize=(1670,), meta=np.ndarray>

    Array Chunk Bytes 13.05 kiB 13.05 kiB Shape (1670,) (1670,) Dask graph 1 chunks in 10 graph layers Data type float64 numpy.ndarray

  • pixel
    (ground_range)
    float64
    dask.array<chunksize=(2624,), meta=np.ndarray>

    Array Chunk Bytes 20.50 kiB 20.50 kiB Shape (2624,) (2624,) Dask graph 1 chunks in 10 graph layers Data type float64 numpy.ndarray

  • latitude
    (azimuth_time, ground_range)
    float64
    dask.array<chunksize=(1670, 2624), meta=np.ndarray>

    _eopf_attrs :

    {'coordinates': ['azimuth_time', 'ground_range', 'line', 'pixel'], 'dimensions': ['azimuth_time', 'ground_range']}

    Array Chunk Bytes 33.43 MiB 33.43 MiB Shape (1670, 2624) (1670, 2624) Dask graph 1 chunks in 20 graph layers Data type float64 numpy.ndarray

  • longitude
    (azimuth_time, ground_range)
    float64
    dask.array<chunksize=(1670, 2624), meta=np.ndarray>

    _eopf_attrs :

    {'coordinates': ['azimuth_time', 'ground_range', 'line', 'pixel'], 'dimensions': ['azimuth_time', 'ground_range']}

    Array Chunk Bytes 33.43 MiB 33.43 MiB Shape (1670, 2624) (1670, 2624) Dask graph 1 chunks in 20 graph layers Data type float64 numpy.ndarray

• Attributes: (3)

  _eopf_attrs :

  {'coordinates': ['azimuth_time', 'line', 'pixel', 'ground_range'], 'dimensions': ['azimuth_time', 'ground_range'], 'dtype': '<u2', 'long_name': 'measurement data set for GRD IW'}

  dtype :

  <u2

  long_name :

  measurement data set for GRD IW

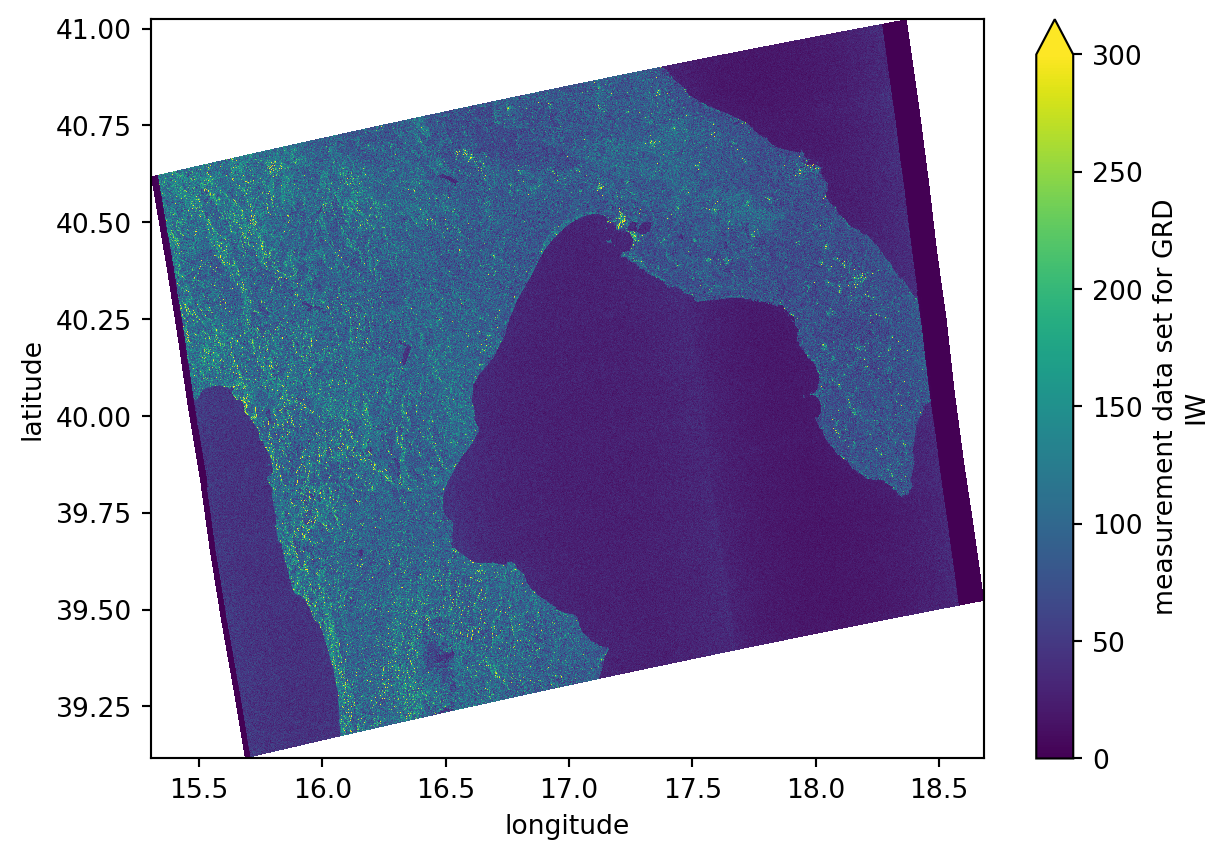

grd.plot(x="longitude", y="latitude", vmax=300)
plt.show()

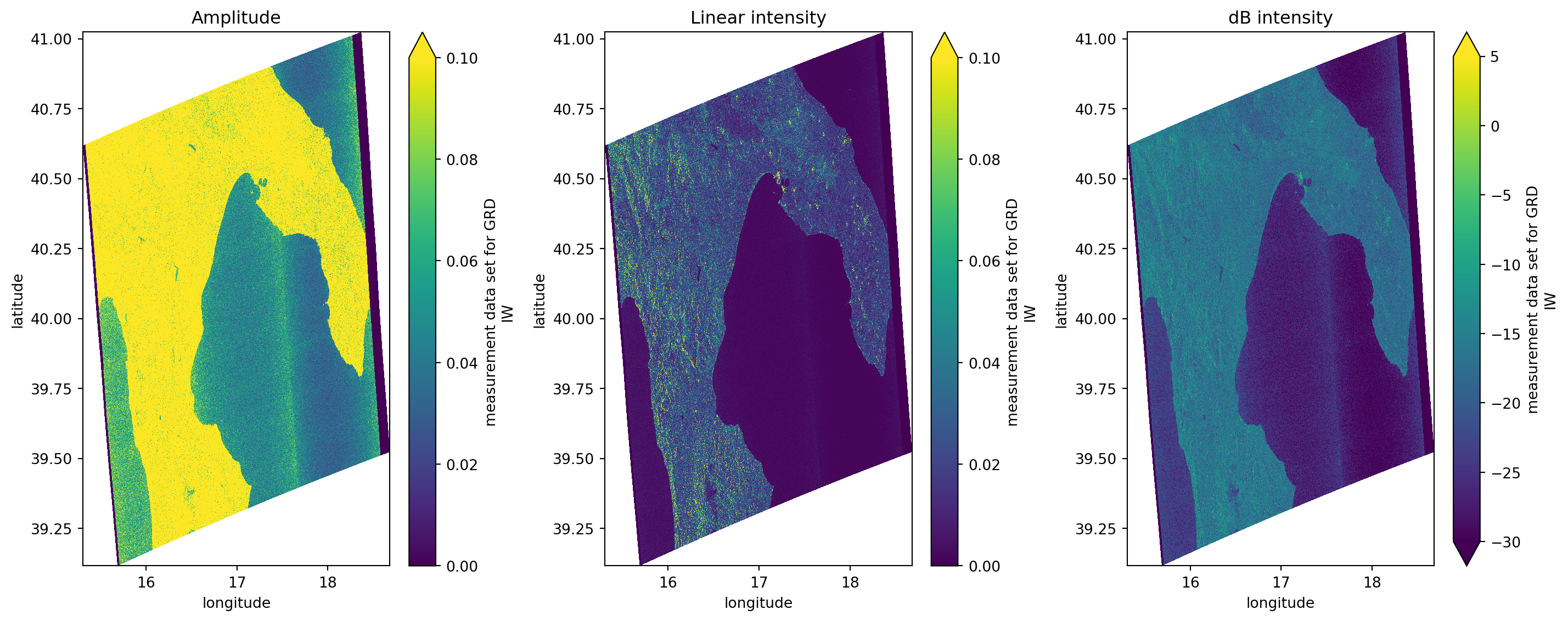

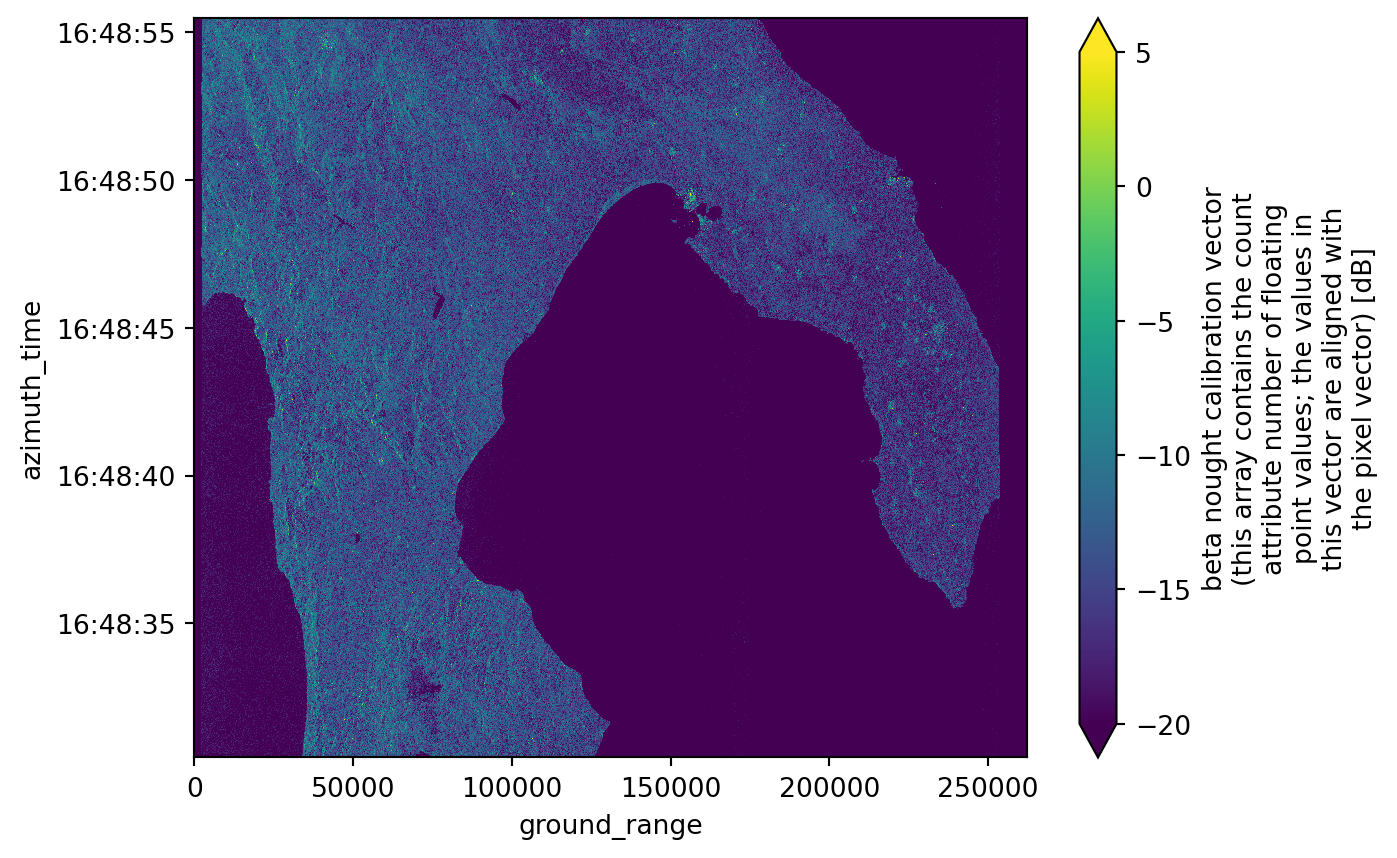

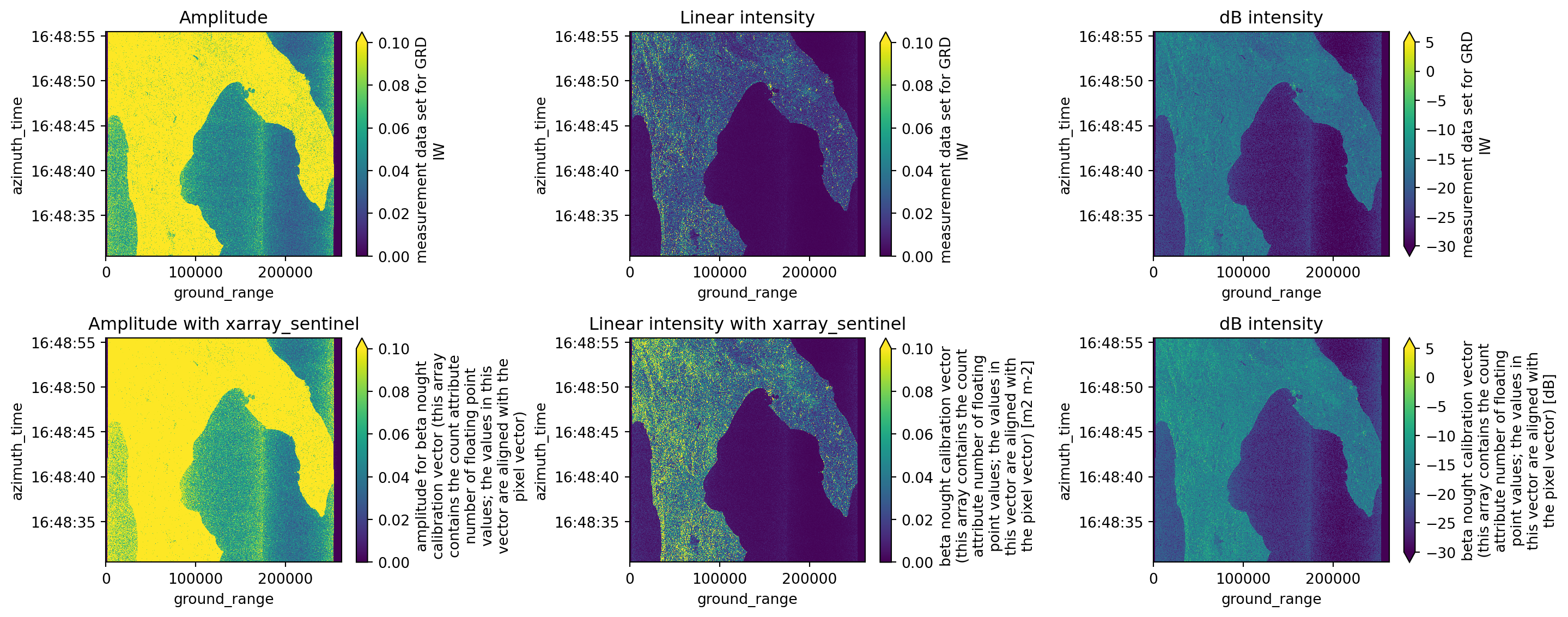

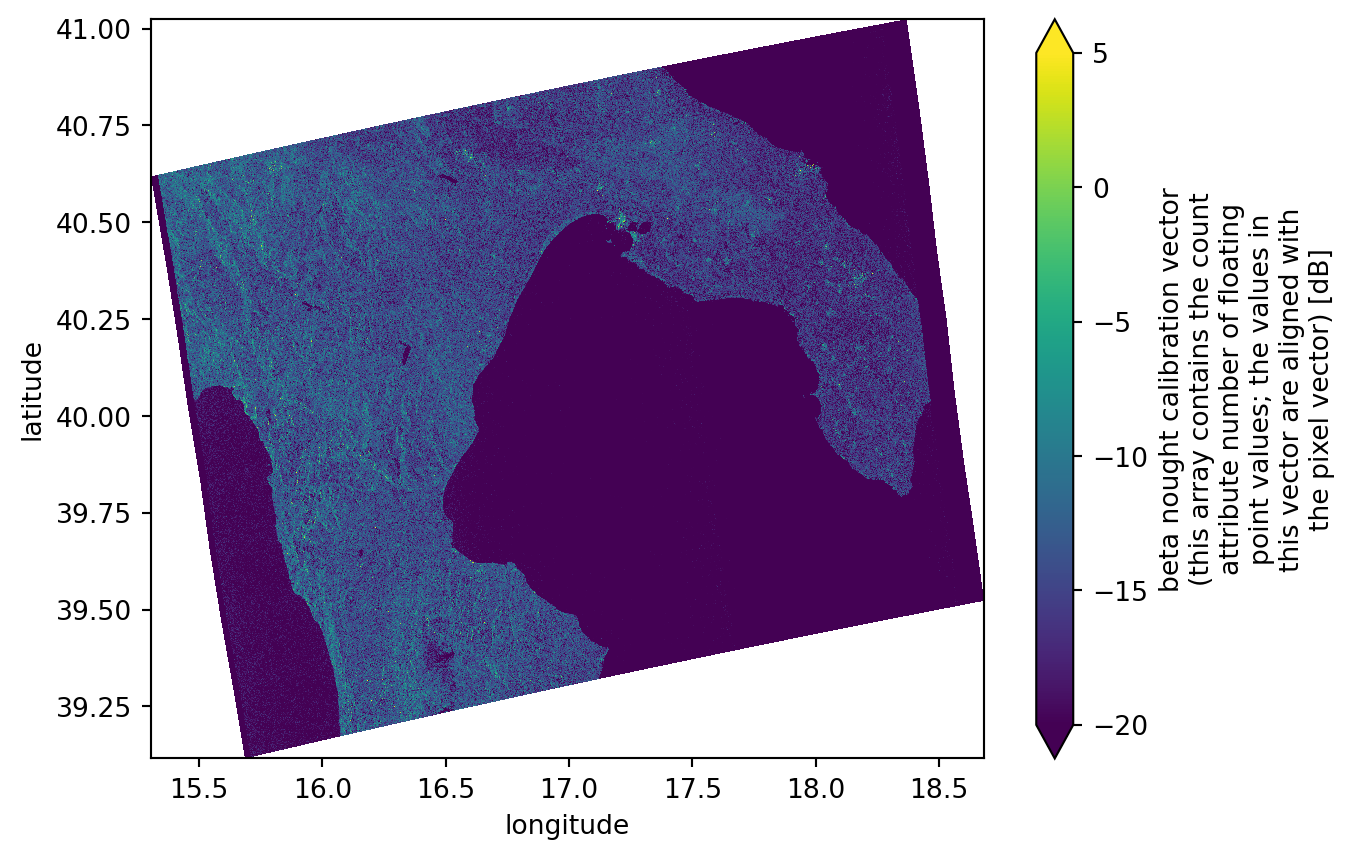

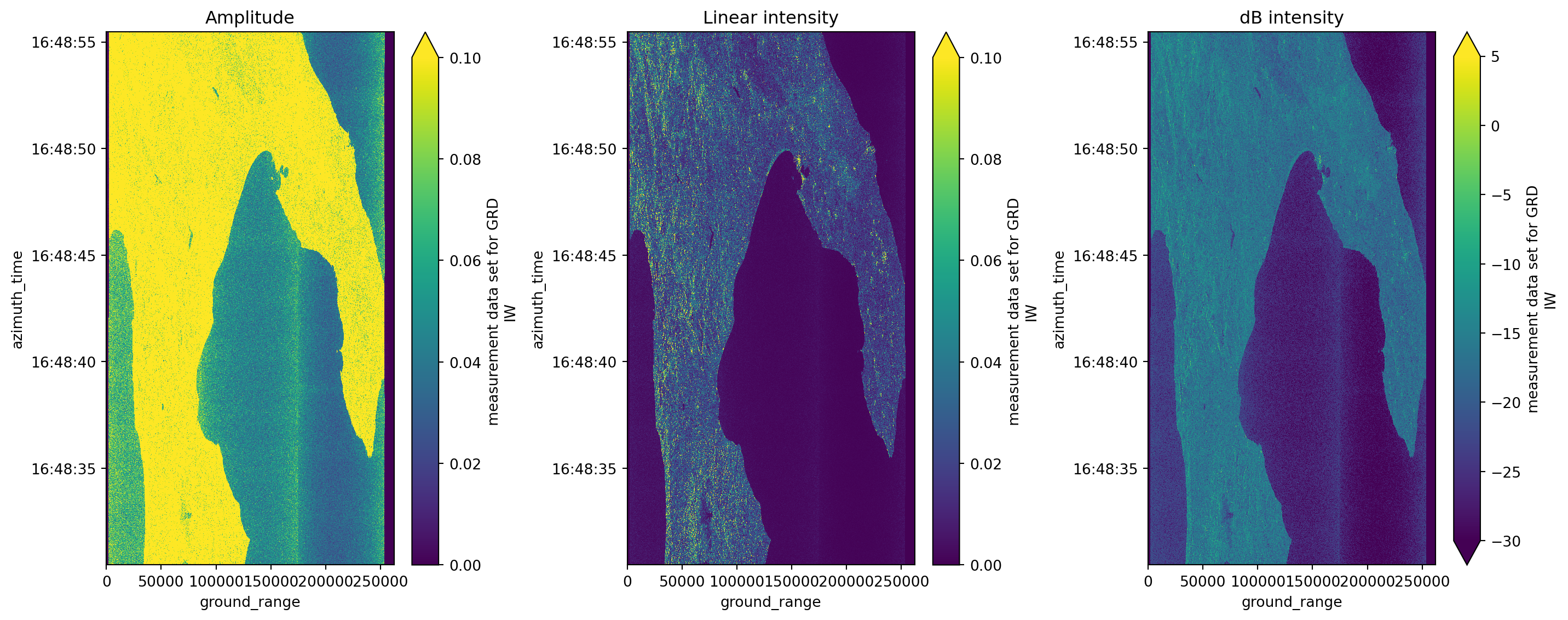

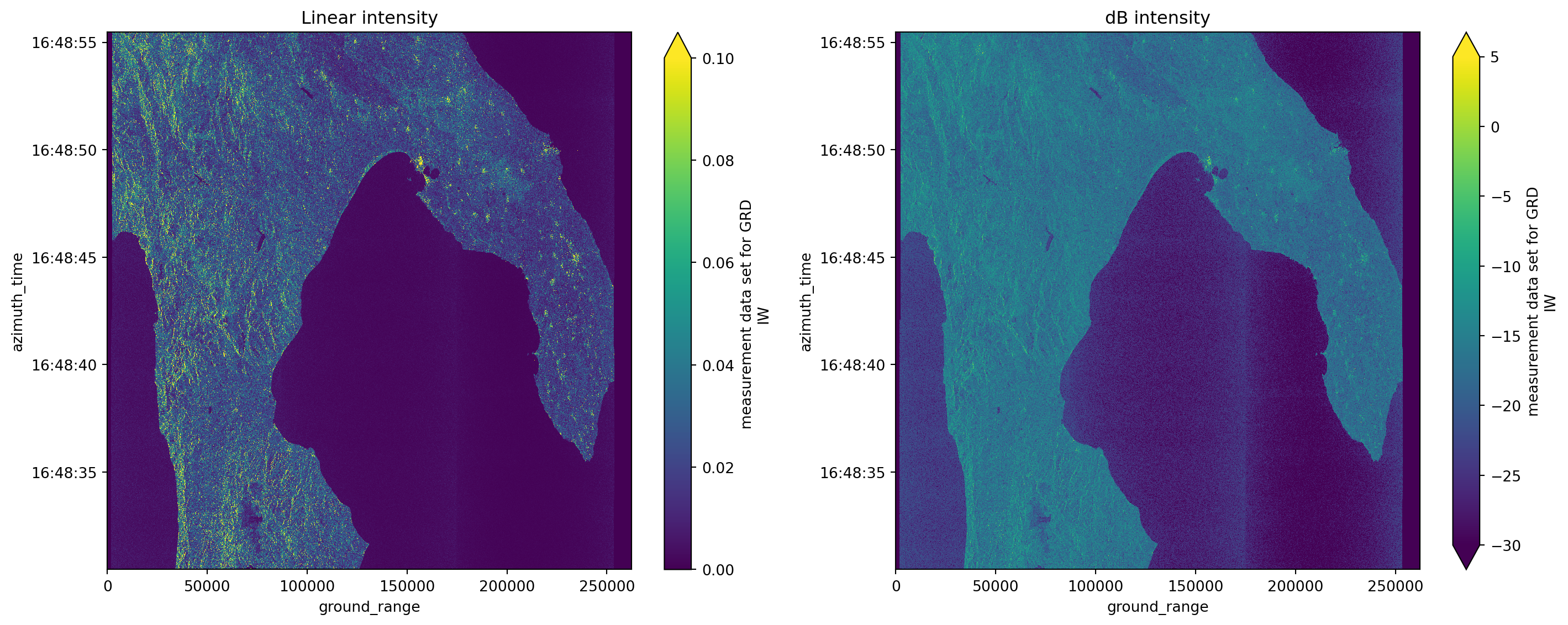

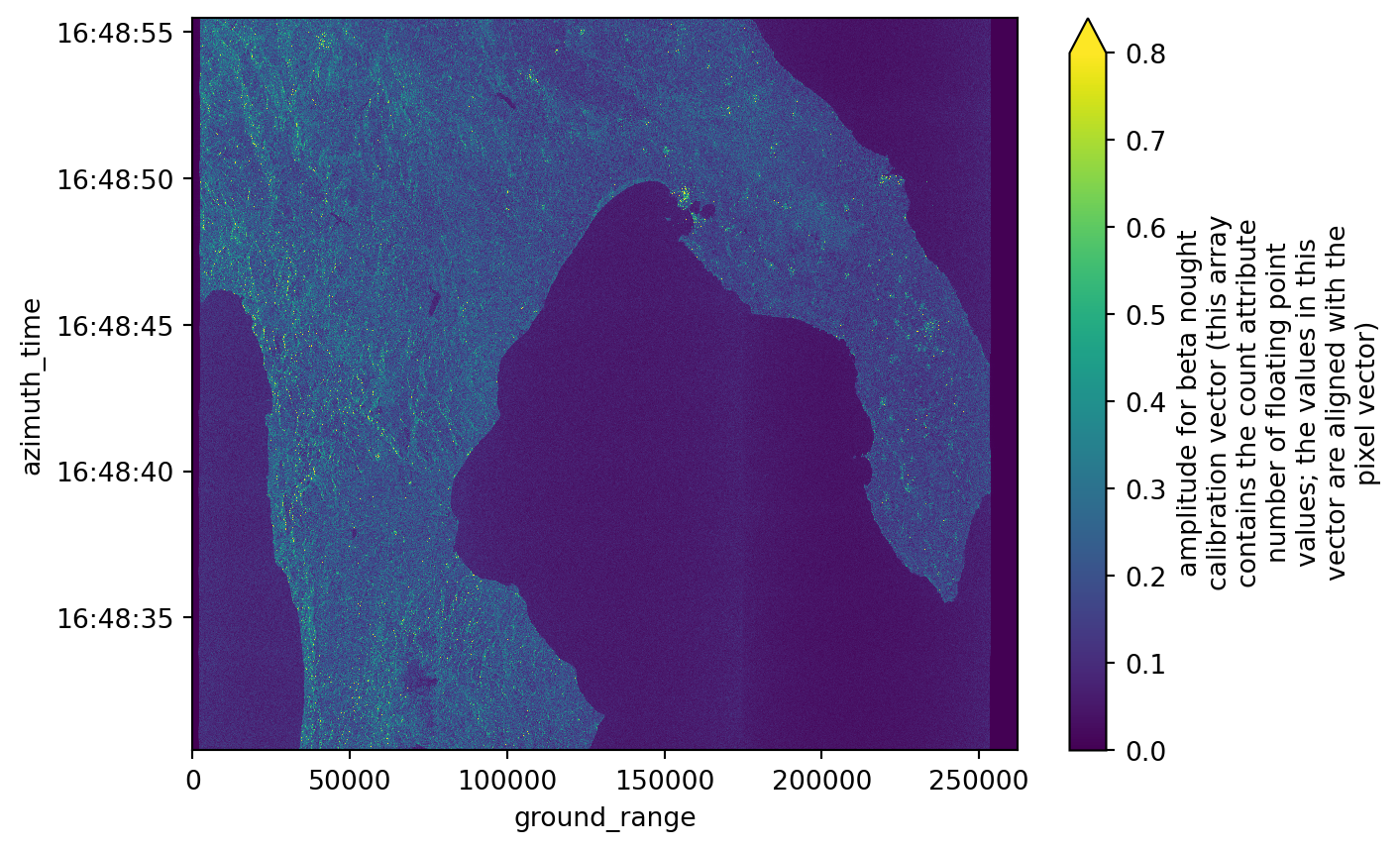

Calibrating intensity and amplitude

In Sentinel-1 GRD products, only the amplitude of the signal is stored, while the phase information is discarded, unlike Single Look Complex (SLC) products, which preserve both. Therefore, it is essential to calibrate the amplitude using the raw Digital Number (DN) values and the additional metadata provided in the calibration subgroup, with components such as beta_nought, gamma and sigma_nought.

The relationship between intensity and amplitude is given by: \[ \text{Intensity} = |\text{Amplitude}|^2 \]

Setting calibration subgroup

calibration = dt["/S01SIWGRD_20170508T164830_0025_A094_8604_01B54C_VH/quality/calibration"].to_dataset()
calibration

<xarray.Dataset> Size: 292kB
Dimensions:       (azimuth_time: 27, ground_range: 657)
Coordinates:
  * azimuth_time  (azimuth_time) datetime64[ns] 216B 2017-05-08T16:48:30.4679...
  * ground_range  (ground_range) float64 5kB 0.0 6.677e+06 ... 4.38e+09
    line          (azimuth_time) uint32 108B dask.array<chunksize=(27,), meta=np.ndarray>
    pixel         (ground_range) uint32 3kB dask.array<chunksize=(657,), meta=np.ndarray>
Data variables:
    beta_nought   (azimuth_time, ground_range) float32 71kB dask.array<chunksize=(27, 657), meta=np.ndarray>
    dn            (azimuth_time, ground_range) float32 71kB dask.array<chunksize=(27, 657), meta=np.ndarray>
    gamma         (azimuth_time, ground_range) float32 71kB dask.array<chunksize=(27, 657), meta=np.ndarray>
    sigma_nought  (azimuth_time, ground_range) float32 71kB dask.array<chunksize=(27, 657), meta=np.ndarray>

xarray.Dataset

• Dimensions:
  • azimuth_time: 27
  • ground_range: 657
• Coordinates: (4)
  • azimuth_time
    (azimuth_time)
    datetime64[ns]
    2017-05-08T16:48:30.467916 ... 2...

    dimensions :

    ['azimuth_time']

    dtype :

    <M8[us]

    long_name :

    zero doppler azimuth time at which calibration vector applies

    array(['2017-05-08T16:48:30.467916000', '2017-05-08T16:48:31.467916000',
           '2017-05-08T16:48:32.467916000', '2017-05-08T16:48:33.467916000',
           '2017-05-08T16:48:34.467916000', '2017-05-08T16:48:35.467916000',
           '2017-05-08T16:48:36.467916000', '2017-05-08T16:48:37.467916000',
           '2017-05-08T16:48:38.467916000', '2017-05-08T16:48:39.467916000',
           '2017-05-08T16:48:40.467916000', '2017-05-08T16:48:41.467916000',
           '2017-05-08T16:48:42.467916000', '2017-05-08T16:48:43.467916000',
           '2017-05-08T16:48:44.467916000', '2017-05-08T16:48:45.467916000',
           '2017-05-08T16:48:46.467916000', '2017-05-08T16:48:47.467916000',
           '2017-05-08T16:48:48.467916000', '2017-05-08T16:48:49.467916000',
           '2017-05-08T16:48:50.467916000', '2017-05-08T16:48:51.467916000',
           '2017-05-08T16:48:52.467916000', '2017-05-08T16:48:53.467916000',
           '2017-05-08T16:48:54.467916000', '2017-05-08T16:48:55.467916000',
           '2017-05-08T16:48:56.467916000'], dtype='datetime64[ns]')

  • ground_range
    (ground_range)
    float64
    0.0 6.677e+06 ... 4.38e+09

    dimensions :

    ['ground_range']

    dtype :

    <f8

    array([0.000000e+00, 6.677200e+06, 1.335440e+07, ..., 4.366889e+09,
           4.373566e+09, 4.379909e+09], shape=(657,))

  • line
    (azimuth_time)
    uint32
    dask.array<chunksize=(27,), meta=np.ndarray>

    dimensions :

    ['azimuth_time']

    dtype :

    <u4

    long_name :

    image line at which the calibration vector applies

    Array Chunk Bytes 108 B 108 B Shape (27,) (27,) Dask graph 1 chunks in 2 graph layers Data type uint32 numpy.ndarray

  • pixel
    (ground_range)
    uint32
    dask.array<chunksize=(657,), meta=np.ndarray>

    dimensions :

    ['ground_range']

    dtype :

    <u4

    long_name :

    image pixel at which the calibration vector applies (this array contains the count attribute number of integer values (i.e. one value per point in the noise vector); the maximum length of this array is one value for every pixel in an image line, however in general the vector is subsampled)

    Array Chunk Bytes 2.57 kiB 2.57 kiB Shape (657,) (657,) Dask graph 1 chunks in 2 graph layers Data type uint32 numpy.ndarray

• Data variables: (4)
  • beta_nought
    (azimuth_time, ground_range)
    float32
    dask.array<chunksize=(27, 657), meta=np.ndarray>

    _eopf_attrs :

    {'coordinates': ['azimuth_time', 'line', 'pixel', 'ground_range'], 'dimensions': ['azimuth_time', 'ground_range'], 'dtype': '<f4', 'long_name': 'beta nought calibration vector (this array contains the count attribute number of floating point values; the values in this vector are aligned with the pixel vector)'}

    dtype :

    <f4

    long_name :

    beta nought calibration vector (this array contains the count attribute number of floating point values; the values in this vector are aligned with the pixel vector)

    Array Chunk Bytes 69.29 kiB 69.29 kiB Shape (27, 657) (27, 657) Dask graph 1 chunks in 2 graph layers Data type float32 numpy.ndarray

  • dn
    (azimuth_time, ground_range)
    float32
    dask.array<chunksize=(27, 657), meta=np.ndarray>

    _eopf_attrs :

    {'coordinates': ['azimuth_time', 'line', 'pixel', 'ground_range'], 'dimensions': ['azimuth_time', 'ground_range'], 'dtype': '<f4', 'long_name': 'digital number calibration vector (this array contains the count attribute number of floating point values; the values in this vector are aligned with the pixel vector)'}

    dtype :

    <f4

    long_name :

    digital number calibration vector (this array contains the count attribute number of floating point values; the values in this vector are aligned with the pixel vector)

    Array Chunk Bytes 69.29 kiB 69.29 kiB Shape (27, 657) (27, 657) Dask graph 1 chunks in 2 graph layers Data type float32 numpy.ndarray

  • gamma
    (azimuth_time, ground_range)
    float32
    dask.array<chunksize=(27, 657), meta=np.ndarray>

    _eopf_attrs :

    {'coordinates': ['azimuth_time', 'line', 'pixel', 'ground_range'], 'dimensions': ['azimuth_time', 'ground_range'], 'dtype': '<f4', 'long_name': 'gamma calibration vector (this array contains the count attribute number of floating point values; the values in this vector are aligned with the pixel vector)'}

    dtype :

    <f4

    long_name :

    gamma calibration vector (this array contains the count attribute number of floating point values; the values in this vector are aligned with the pixel vector)

    Array Chunk Bytes 69.29 kiB 69.29 kiB Shape (27, 657) (27, 657) Dask graph 1 chunks in 2 graph layers Data type float32 numpy.ndarray

  • sigma_nought
    (azimuth_time, ground_range)
    float32
    dask.array<chunksize=(27, 657), meta=np.ndarray>

    _eopf_attrs :

    {'coordinates': ['azimuth_time', 'line', 'pixel', 'ground_range'], 'dimensions': ['azimuth_time', 'ground_range'], 'dtype': '<f4', 'long_name': 'sigma nought calibration vector (this array contains the count attribute number of floating point values; the values in this vector are aligned with the pixel vector)'}

    dtype :

    <f4

    long_name :

    sigma nought calibration vector (this array contains the count attribute number of floating point values; the values in this vector are aligned with the pixel vector)

    Array Chunk Bytes 69.29 kiB 69.29 kiB Shape (27, 657) (27, 657) Dask graph 1 chunks in 2 graph layers Data type float32 numpy.ndarray

Intensity calibration

For the intensity calibration we need to use sigma_nought component because it’s the one that presents the backscatter normalized to ground-range area, taking into consideration the true geometry of the terrain.

We could use the calibrate_intensity method from the xarray_sentinel library but, because of the way the zarr values are stored and the existence of some incorrect values on the sigma_nought component, we can not use this useful library on this stage.

On the other hand, we can simulate the intensity calibration using the sigma_nought component manually, using the line and pixel dimensions as reference for values interpolation - instead of using the already known ground_range and azimuth_time.

# sigma_nought is one of the three coefficients we could use
# we could also have used gamma or beta_nought but these two components don't take into account the incidence angle

sigma_nought = calibration.sigma_nought
sigma_nought

<xarray.DataArray 'sigma_nought' (azimuth_time: 27, ground_range: 657)> Size: 71kB
dask.array<open_dataset-sigma_nought, shape=(27, 657), dtype=float32, chunksize=(27, 657), chunktype=numpy.ndarray>
Coordinates:
  * azimuth_time  (azimuth_time) datetime64[ns] 216B 2017-05-08T16:48:30.4679...
  * ground_range  (ground_range) float64 5kB 0.0 6.677e+06 ... 4.38e+09
    line          (azimuth_time) uint32 108B dask.array<chunksize=(27,), meta=np.ndarray>
    pixel         (ground_range) uint32 3kB dask.array<chunksize=(657,), meta=np.ndarray>
Attributes:
    _eopf_attrs:  {'coordinates': ['azimuth_time', 'line', 'pixel', 'ground_r...
    dtype:        <f4
    long_name:    sigma nought calibration vector (this array contains the co...

xarray.DataArray

'sigma_nought'

• azimuth_time: 27
• ground_range: 657

• dask.array<chunksize=(27, 657), meta=np.ndarray>

  Array Chunk Bytes 69.29 kiB 69.29 kiB Shape (27, 657) (27, 657) Dask graph 1 chunks in 2 graph layers Data type float32 numpy.ndarray

• Coordinates: (4)
  • azimuth_time
    (azimuth_time)
    datetime64[ns]
    2017-05-08T16:48:30.467916 ... 2...

    dimensions :

    ['azimuth_time']

    dtype :

    <M8[us]

    long_name :

    zero doppler azimuth time at which calibration vector applies

    array(['2017-05-08T16:48:30.467916000', '2017-05-08T16:48:31.467916000',
           '2017-05-08T16:48:32.467916000', '2017-05-08T16:48:33.467916000',
           '2017-05-08T16:48:34.467916000', '2017-05-08T16:48:35.467916000',
           '2017-05-08T16:48:36.467916000', '2017-05-08T16:48:37.467916000',
           '2017-05-08T16:48:38.467916000', '2017-05-08T16:48:39.467916000',
           '2017-05-08T16:48:40.467916000', '2017-05-08T16:48:41.467916000',
           '2017-05-08T16:48:42.467916000', '2017-05-08T16:48:43.467916000',
           '2017-05-08T16:48:44.467916000', '2017-05-08T16:48:45.467916000',
           '2017-05-08T16:48:46.467916000', '2017-05-08T16:48:47.467916000',
           '2017-05-08T16:48:48.467916000', '2017-05-08T16:48:49.467916000',
           '2017-05-08T16:48:50.467916000', '2017-05-08T16:48:51.467916000',
           '2017-05-08T16:48:52.467916000', '2017-05-08T16:48:53.467916000',
           '2017-05-08T16:48:54.467916000', '2017-05-08T16:48:55.467916000',
           '2017-05-08T16:48:56.467916000'], dtype='datetime64[ns]')

  • ground_range
    (ground_range)
    float64
    0.0 6.677e+06 ... 4.38e+09

    dimensions :

    ['ground_range']

    dtype :

    <f8

    array([0.000000e+00, 6.677200e+06, 1.335440e+07, ..., 4.366889e+09,
           4.373566e+09, 4.379909e+09], shape=(657,))

  • line
    (azimuth_time)
    uint32
    dask.array<chunksize=(27,), meta=np.ndarray>

    dimensions :

    ['azimuth_time']

    dtype :

    <u4

    long_name :

    image line at which the calibration vector applies

    Array Chunk Bytes 108 B 108 B Shape (27,) (27,) Dask graph 1 chunks in 2 graph layers Data type uint32 numpy.ndarray

  • pixel
    (ground_range)
    uint32
    dask.array<chunksize=(657,), meta=np.ndarray>

    dimensions :

    ['ground_range']

    dtype :

    <u4

    long_name :

    image pixel at which the calibration vector applies (this array contains the count attribute number of integer values (i.e. one value per point in the noise vector); the maximum length of this array is one value for every pixel in an image line, however in general the vector is subsampled)

    Array Chunk Bytes 2.57 kiB 2.57 kiB Shape (657,) (657,) Dask graph 1 chunks in 2 graph layers Data type uint32 numpy.ndarray

• Attributes: (3)

  _eopf_attrs :

  {'coordinates': ['azimuth_time', 'line', 'pixel', 'ground_range'], 'dimensions': ['azimuth_time', 'ground_range'], 'dtype': '<f4', 'long_name': 'sigma nought calibration vector (this array contains the count attribute number of floating point values; the values in this vector are aligned with the pixel vector)'}

  dtype :

  <f4

  long_name :

  sigma nought calibration vector (this array contains the count attribute number of floating point values; the values in this vector are aligned with the pixel vector)

# we reacreate the sigma_nought array with line and pixel dimensions for easier interpolation
sigma_nought_line_pixel = xr.DataArray(
    data=sigma_nought.data,
    dims=["line", "pixel"],
    coords=dict(
        line=(["line"], sigma_nought.line.values),
        pixel=(["pixel"], sigma_nought.pixel.values),
    ),
)

sigma_nought_line_pixel

<xarray.DataArray 'open_dataset-sigma_nought-8bcf01bd8af6fc59735108ba54b440fa' (
                                                                                line: 27,
                                                                                pixel: 657)> Size: 71kB
dask.array<open_dataset-sigma_nought, shape=(27, 657), dtype=float32, chunksize=(27, 657), chunktype=numpy.ndarray>
Coordinates:
  * line     (line) uint32 108B 0 668 1335 2003 2671 ... 15358 16026 16694 17361
  * pixel    (pixel) uint32 3kB 0 40 80 120 160 ... 26120 26160 26200 26238

xarray.DataArray

'open_dataset-sigma_nought-8bcf01bd8af6fc59735108ba54b440fa'

• line: 27
• pixel: 657

• dask.array<chunksize=(27, 657), meta=np.ndarray>

  Array Chunk Bytes 69.29 kiB 69.29 kiB Shape (27, 657) (27, 657) Dask graph 1 chunks in 2 graph layers Data type float32 numpy.ndarray

• Coordinates: (2)
  • line
    (line)
    uint32
    0 668 1335 ... 16026 16694 17361

    array([    0,   668,  1335,  2003,  2671,  3339,  4006,  4674,  5342,  6010,
            6677,  7345,  8013,  8681,  9348, 10016, 10684, 11352, 12019, 12687,
           13355, 14023, 14690, 15358, 16026, 16694, 17361], dtype=uint32)

  • pixel
    (pixel)
    uint32
    0 40 80 120 ... 26160 26200 26238

    array([    0,    40,    80, ..., 26160, 26200, 26238],
          shape=(657,), dtype=uint32)

We can see that the new array created for the sigma_nought component is basically the same as the “regular” sigma_nought with the exception that sigma_nought_line_pixel has as coordinates only pixel and line.

Now, we’ll do the same for the grd variable, in order to eneable the later interpolation.

# just like for the sigma_nought, we reacreate the grd array with line and pixel dimensions for easier interpolation
grd_line_pixel = xr.DataArray(
    data=grd.data,
    dims=["line", "pixel"],
    coords=dict(
        line=(["line"], grd.line.values),
        pixel=(["pixel"], grd.pixel.values),
    ),
)

# we interpolate the sigma_nought with the grd geometry
sigma_nought_interp_line_pixel = sigma_nought_line_pixel.interp_like(grd_line_pixel, method="linear")

Finally we recreate the sigma_nought array with correct dimensions, adding the original azimuth_time and ground_range coordinates from the grd dataarray. This can be seen as a correct version of the sigma_nought component.

sigma_nought_interp = xr.DataArray(
    data=sigma_nought_interp_line_pixel.data,
    dims=["azimuth_time", "ground_range"],
    coords=dict(
        azimuth_time=(["azimuth_time"], grd.azimuth_time.values),
        ground_range=(["ground_range"], grd.ground_range.values),
    ),
)

Now, we just need to compute the actual values for the linear intensity:

\[ \text{Intensity} = \frac{|S_{\rm grd}|^2}{\rm sigmaNought^2} \]

intensity = ((abs(grd.astype(np.float32)) ** 2) / (sigma_nought_interp**2))
intensity

<xarray.DataArray (azimuth_time: 1670, ground_range: 2624)> Size: 18MB
dask.array<truediv, shape=(1670, 2624), dtype=float32, chunksize=(256, 2624), chunktype=numpy.ndarray>
Coordinates:
  * azimuth_time  (azimuth_time) datetime64[ns] 13kB 2017-05-08T16:48:30.4679...
  * ground_range  (ground_range) float64 21kB 0.0 100.0 ... 2.622e+05 2.623e+05
    line          (azimuth_time) float64 13kB dask.array<chunksize=(1670,), meta=np.ndarray>
    pixel         (ground_range) float64 21kB dask.array<chunksize=(2624,), meta=np.ndarray>
    latitude      (azimuth_time, ground_range) float64 35MB dask.array<chunksize=(1670, 2624), meta=np.ndarray>
    longitude     (azimuth_time, ground_range) float64 35MB dask.array<chunksize=(1670, 2624), meta=np.ndarray>
Attributes:
    _eopf_attrs:  {'coordinates': ['azimuth_time', 'line', 'pixel', 'ground_r...
    dtype:        <u2
    long_name:    measurement data set for GRD IW

xarray.DataArray

• azimuth_time: 1670
• ground_range: 2624

• dask.array<chunksize=(256, 2624), meta=np.ndarray>

  Array Chunk Bytes 16.72 MiB 2.56 MiB Shape (1670, 2624) (256, 2624) Dask graph 7 chunks in 29 graph layers Data type float32 numpy.ndarray

• Coordinates: (6)
  • azimuth_time
    (azimuth_time)
    datetime64[ns]
    2017-05-08T16:48:30.467916 ... 2...

    array(['2017-05-08T16:48:30.467916000', '2017-05-08T16:48:30.482891740',
           '2017-05-08T16:48:30.497867480', ..., '2017-05-08T16:48:55.432474797',
           '2017-05-08T16:48:55.447450537', '2017-05-08T16:48:55.462426277'],
          shape=(1670,), dtype='datetime64[ns]')

  • ground_range
    (ground_range)
    float64
    0.0 100.0 ... 2.622e+05 2.623e+05

    array([0.000e+00, 1.000e+02, 2.000e+02, ..., 2.621e+05, 2.622e+05, 2.623e+05],
          shape=(2624,))

  • line
    (azimuth_time)
    float64
    dask.array<chunksize=(1670,), meta=np.ndarray>

    Array Chunk Bytes 13.05 kiB 13.05 kiB Shape (1670,) (1670,) Dask graph 1 chunks in 10 graph layers Data type float64 numpy.ndarray

  • pixel
    (ground_range)
    float64
    dask.array<chunksize=(2624,), meta=np.ndarray>

    Array Chunk Bytes 20.50 kiB 20.50 kiB Shape (2624,) (2624,) Dask graph 1 chunks in 10 graph layers Data type float64 numpy.ndarray

  • latitude
    (azimuth_time, ground_range)
    float64
    dask.array<chunksize=(1670, 2624), meta=np.ndarray>

    _eopf_attrs :

    {'coordinates': ['azimuth_time', 'ground_range', 'line', 'pixel'], 'dimensions': ['azimuth_time', 'ground_range']}

    Array Chunk Bytes 33.43 MiB 33.43 MiB Shape (1670, 2624) (1670, 2624) Dask graph 1 chunks in 20 graph layers Data type float64 numpy.ndarray

  • longitude
    (azimuth_time, ground_range)
    float64
    dask.array<chunksize=(1670, 2624), meta=np.ndarray>

    _eopf_attrs :

    {'coordinates': ['azimuth_time', 'ground_range', 'line', 'pixel'], 'dimensions': ['azimuth_time', 'ground_range']}

    Array Chunk Bytes 33.43 MiB 33.43 MiB Shape (1670, 2624) (1670, 2624) Dask graph 1 chunks in 20 graph layers Data type float64 numpy.ndarray

• Attributes: (3)

  _eopf_attrs :

  {'coordinates': ['azimuth_time', 'line', 'pixel', 'ground_range'], 'dimensions': ['azimuth_time', 'ground_range'], 'dtype': '<u2', 'long_name': 'measurement data set for GRD IW'}

  dtype :

  <u2

  long_name :

  measurement data set for GRD IW

We’ll also see that we can compute the intensity for with a dB scale:

\[ Intensity_{\text{dB}} = 10 \cdot \log_{10}(Intensity_{\text{linear}}) \]

intensity_db = 10 * np.log10(np.maximum(intensity, 1e-10))
intensity_db

<xarray.DataArray (azimuth_time: 1670, ground_range: 2624)> Size: 18MB
dask.array<mul, shape=(1670, 2624), dtype=float32, chunksize=(256, 2624), chunktype=numpy.ndarray>
Coordinates:
  * azimuth_time  (azimuth_time) datetime64[ns] 13kB 2017-05-08T16:48:30.4679...
  * ground_range  (ground_range) float64 21kB 0.0 100.0 ... 2.622e+05 2.623e+05
    line          (azimuth_time) float64 13kB dask.array<chunksize=(1670,), meta=np.ndarray>
    pixel         (ground_range) float64 21kB dask.array<chunksize=(2624,), meta=np.ndarray>
    latitude      (azimuth_time, ground_range) float64 35MB dask.array<chunksize=(1670, 2624), meta=np.ndarray>
    longitude     (azimuth_time, ground_range) float64 35MB dask.array<chunksize=(1670, 2624), meta=np.ndarray>
Attributes:
    _eopf_attrs:  {'coordinates': ['azimuth_time', 'line', 'pixel', 'ground_r...
    dtype:        <u2
    long_name:    measurement data set for GRD IW

xarray.DataArray

• azimuth_time: 1670
• ground_range: 2624

• dask.array<chunksize=(256, 2624), meta=np.ndarray>

  Array Chunk Bytes 16.72 MiB 2.56 MiB Shape (1670, 2624) (256, 2624) Dask graph 7 chunks in 32 graph layers Data type float32 numpy.ndarray

• Coordinates: (6)
  • azimuth_time
    (azimuth_time)
    datetime64[ns]
    2017-05-08T16:48:30.467916 ... 2...

    array(['2017-05-08T16:48:30.467916000', '2017-05-08T16:48:30.482891740',
           '2017-05-08T16:48:30.497867480', ..., '2017-05-08T16:48:55.432474797',
           '2017-05-08T16:48:55.447450537', '2017-05-08T16:48:55.462426277'],
          shape=(1670,), dtype='datetime64[ns]')

  • ground_range
    (ground_range)
    float64
    0.0 100.0 ... 2.622e+05 2.623e+05

    array([0.000e+00, 1.000e+02, 2.000e+02, ..., 2.621e+05, 2.622e+05, 2.623e+05],
          shape=(2624,))

  • line
    (azimuth_time)
    float64
    dask.array<chunksize=(1670,), meta=np.ndarray>

    Array Chunk Bytes 13.05 kiB 13.05 kiB Shape (1670,) (1670,) Dask graph 1 chunks in 10 graph layers Data type float64 numpy.ndarray

  • pixel
    (ground_range)
    float64
    dask.array<chunksize=(2624,), meta=np.ndarray>

    Array Chunk Bytes 20.50 kiB 20.50 kiB Shape (2624,) (2624,) Dask graph 1 chunks in 10 graph layers Data type float64 numpy.ndarray

  • latitude
    (azimuth_time, ground_range)
    float64
    dask.array<chunksize=(1670, 2624), meta=np.ndarray>

    _eopf_attrs :

    {'coordinates': ['azimuth_time', 'ground_range', 'line', 'pixel'], 'dimensions': ['azimuth_time', 'ground_range']}

    Array Chunk Bytes 33.43 MiB 33.43 MiB Shape (1670, 2624) (1670, 2624) Dask graph 1 chunks in 20 graph layers Data type float64 numpy.ndarray

  • longitude
    (azimuth_time, ground_range)
    float64
    dask.array<chunksize=(1670, 2624), meta=np.ndarray>

    _eopf_attrs :

    {'coordinates': ['azimuth_time', 'ground_range', 'line', 'pixel'], 'dimensions': ['azimuth_time', 'ground_range']}

    Array Chunk Bytes 33.43 MiB 33.43 MiB Shape (1670, 2624) (1670, 2624) Dask graph 1 chunks in 20 graph layers Data type float64 numpy.ndarray

• Attributes: (3)

  _eopf_attrs :

  {'coordinates': ['azimuth_time', 'line', 'pixel', 'ground_range'], 'dimensions': ['azimuth_time', 'ground_range'], 'dtype': '<u2', 'long_name': 'measurement data set for GRD IW'}

  dtype :

  <u2

  long_name :

  measurement data set for GRD IW

# plotting both linear intensity and dB intensity results
fig, axes = plt.subplots(1, 2, figsize=(15, 6))

intensity.plot(ax=axes[0], vmin=0.0, vmax=0.1)
axes[0].set_title("Linear intensity")

intensity_db.plot(ax=axes[1], vmin=-30, vmax=5)
axes[1].set_title("dB intensity")

plt.tight_layout()
plt.show()

Amplitude calibration

With the intensity calibrated, the amplitude calibration is very straightforward, since it is the square root of the intensity.

amplitude = np.sqrt(intensity)
amplitude

<xarray.DataArray (azimuth_time: 1670, ground_range: 2624)> Size: 18MB
dask.array<sqrt, shape=(1670, 2624), dtype=float32, chunksize=(256, 2624), chunktype=numpy.ndarray>
Coordinates:
  * azimuth_time  (azimuth_time) datetime64[ns] 13kB 2017-05-08T16:48:30.4679...
  * ground_range  (ground_range) float64 21kB 0.0 100.0 ... 2.622e+05 2.623e+05
    line          (azimuth_time) float64 13kB dask.array<chunksize=(1670,), meta=np.ndarray>
    pixel         (ground_range) float64 21kB dask.array<chunksize=(2624,), meta=np.ndarray>
    latitude      (azimuth_time, ground_range) float64 35MB dask.array<chunksize=(1670, 2624), meta=np.ndarray>
    longitude     (azimuth_time, ground_range) float64 35MB dask.array<chunksize=(1670, 2624), meta=np.ndarray>
Attributes:
    _eopf_attrs:  {'coordinates': ['azimuth_time', 'line', 'pixel', 'ground_r...
    dtype:        <u2
    long_name:    measurement data set for GRD IW

xarray.DataArray

• azimuth_time: 1670
• ground_range: 2624

• dask.array<chunksize=(256, 2624), meta=np.ndarray>

  Array Chunk Bytes 16.72 MiB 2.56 MiB Shape (1670, 2624) (256, 2624) Dask graph 7 chunks in 30 graph layers Data type float32 numpy.ndarray

• Coordinates: (6)
  • azimuth_time
    (azimuth_time)
    datetime64[ns]
    2017-05-08T16:48:30.467916 ... 2...

    array(['2017-05-08T16:48:30.467916000', '2017-05-08T16:48:30.482891740',
           '2017-05-08T16:48:30.497867480', ..., '2017-05-08T16:48:55.432474797',
           '2017-05-08T16:48:55.447450537', '2017-05-08T16:48:55.462426277'],
          shape=(1670,), dtype='datetime64[ns]')

  • ground_range
    (ground_range)
    float64
    0.0 100.0 ... 2.622e+05 2.623e+05

    array([0.000e+00, 1.000e+02, 2.000e+02, ..., 2.621e+05, 2.622e+05, 2.623e+05],
          shape=(2624,))

  • line
    (azimuth_time)
    float64
    dask.array<chunksize=(1670,), meta=np.ndarray>

    Array Chunk Bytes 13.05 kiB 13.05 kiB Shape (1670,) (1670,) Dask graph 1 chunks in 10 graph layers Data type float64 numpy.ndarray

  • pixel
    (ground_range)
    float64
    dask.array<chunksize=(2624,), meta=np.ndarray>

    Array Chunk Bytes 20.50 kiB 20.50 kiB Shape (2624,) (2624,) Dask graph 1 chunks in 10 graph layers Data type float64 numpy.ndarray

  • latitude
    (azimuth_time, ground_range)
    float64
    dask.array<chunksize=(1670, 2624), meta=np.ndarray>

    _eopf_attrs :

    {'coordinates': ['azimuth_time', 'ground_range', 'line', 'pixel'], 'dimensions': ['azimuth_time', 'ground_range']}

    Array Chunk Bytes 33.43 MiB 33.43 MiB Shape (1670, 2624) (1670, 2624) Dask graph 1 chunks in 20 graph layers Data type float64 numpy.ndarray

  • longitude
    (azimuth_time, ground_range)
    float64
    dask.array<chunksize=(1670, 2624), meta=np.ndarray>

    _eopf_attrs :

    {'coordinates': ['azimuth_time', 'ground_range', 'line', 'pixel'], 'dimensions': ['azimuth_time', 'ground_range']}

    Array Chunk Bytes 33.43 MiB 33.43 MiB Shape (1670, 2624) (1670, 2624) Dask graph 1 chunks in 20 graph layers Data type float64 numpy.ndarray

• Attributes: (3)

  _eopf_attrs :

  {'coordinates': ['azimuth_time', 'line', 'pixel', 'ground_range'], 'dimensions': ['azimuth_time', 'ground_range'], 'dtype': '<u2', 'long_name': 'measurement data set for GRD IW'}

  dtype :

  <u2

  long_name :

  measurement data set for GRD IW

# plotting amplitude with both linear intensity and dB intensity results
fig, axes = plt.subplots(1, 3, figsize=(15, 6))

# not that we keep the same max and min values for better comparison
amplitude.plot(ax=axes[0], vmin=0.0, vmax=0.1) # changing vmax to 0.8 and removing vmin would allow to see different details
axes[0].set_title("Amplitude")

intensity.plot(ax=axes[1], vmin=0.0, vmax=0.1)
axes[1].set_title("Linear intensity")

intensity_db.plot(ax=axes[2], vmin=-30, vmax=5)
axes[2].set_title("dB intensity")

plt.tight_layout()
plt.show()

Georeferenced intensity and amplitude

Because we had already georefefenced the images, we can now also plot theresults with latitude and longitude coordinates.

# plotting amplitude with both linear intensity and dB intensity results georeferenced
fig, axes = plt.subplots(1, 3, figsize=(15, 6))

amplitude.plot(ax=axes[0], x="longitude", y="latitude", vmin=0.0, vmax=0.1)
axes[0].set_title("Amplitude")

intensity.plot(ax=axes[1], x="longitude", y="latitude", vmin=0.0, vmax=0.1)
axes[1].set_title("Linear intensity")

intensity_db.plot(ax=axes[2], x="longitude", y="latitude", vmin=-30, vmax=5)
axes[2].set_title("dB intensity")

plt.tight_layout()
plt.show()

Comparing results with xarray_sentinel

calibrate_amplitude = xarray_sentinel.calibrate_amplitude(
    grd, calibration.beta_nought)

calibrate_intensity = xarray_sentinel.calibrate_intensity(
    grd, calibration.beta_nought)

calibrate_intensity_db = xarray_sentinel.calibrate_intensity(
    grd, calibration.beta_nought, as_db=True)

# plotting amplitude with both linear intensity and dB intensity results vs with xarray_sentinel calibration functions
fig, axes = plt.subplots(2, 3, figsize=(15, 6))

amplitude.plot(ax=axes[0, 0], vmin=0.0, vmax=0.1)
axes[0, 0].set_title("Amplitude")

intensity.plot(ax=axes[0, 1], vmin=0.0, vmax=0.1)
axes[0, 1].set_title("Linear intensity")

intensity_db.plot(ax=axes[0, 2], vmin=-30, vmax=5)
axes[0, 2].set_title("dB intensity")

calibrate_amplitude.plot(ax=axes[1, 0], vmin=0.0, vmax=0.1)
axes[1, 0].set_title("Amplitude with xarray_sentinel")

calibrate_intensity.plot(ax=axes[1, 1], vmin=0.0, vmax=0.1)
axes[1, 1].set_title("Linear intensity with xarray_sentinel")

calibrate_intensity_db.plot(ax=axes[1, 2], vmin=-30, vmax=5)
axes[1, 2].set_title("dB intensity")

plt.tight_layout()
plt.show()

---

💪 Now it is your turn

The following exercises will help you to better understand the calibration processes studied before.

Task 1: Reproduce this workflow on a different area

Using what you’ve already learned about the STAC catalog and Sentinel-1 GRD products, repeat this workflow with a different Sentinel-1 GRD scene. Try to use a scene from the area where you live, just like you did on the previous chapter. Then, observe how the geographical coordinates of the georeferenced image differ between products.

Task 2: Explore intensity and amplitude values

Discover what happens when the maximum and minimum value on x and y axis change. These will create new results, especially when considering the plots on amplitude and intensity calibration.

Task 3: Compare the intensity values with other datasets

Try to calibrate and plot some grd products from other datasets and see how the intensity values change over different areas, textures and surfaces.

Conclusion

During this tutorial we’ve learnt how to compute amplitude and intensity calibration on Sentinel-1 GRD data and how to georeference measurements.grd variable into geographical coordinates.

What’s next?

Now that you have been introduced to the .zarr encoding format, learned its core concepts, and understood the basics of how to explore it, you are prepared for the next step. In the following notebook we will introduce you to the Sentinel-2 L-2A .zarr structure. As we go along, we are more and more transition from theory to practice, providing you with hands-on tutorials working with EOPF .zarr products.
