By: @emmanuelmathot and @pantierra | Development Seed
This notebook demonstrates efficient tiling workflows with EOPF Zarr data using rio-tiler and rio-xarray. Weβll showcase how direct Zarr access with proper chunking delivers superior performance for web mapping and visualization tasks.
Rio-tiler is a powerful Python library designed for creating map tiles from raster data sources. Combined with EOPF Zarrβs cloud-optimized format, it enables efficient tile generation for web mapping applications without downloading entire datasets.
This tutorial builds on concepts from previous sections: - Understanding Zarr Structure β Sentinel-2 data organization - STAC and xarray Tutorial β Accessing EOPF data - Zarr chunking introduction and chunking strategies β Chunking fundamentals
As rio-tiler is extensively used in this notebook, familiarity with its core concepts is beneficial. Refer to the rio-tiler documentation for more details.
Required packages: rio-tiler, rio-xarray, xarray, zarr, pystac-client
import xarray as xr
import numpy as np
import matplotlib.pyplot as plt
from pystac_client import Client
from pystac import MediaType
from rio_tiler.io import XarrayReader
from rasterio.warp import transform_bounds
import rioxarray # side effect: registers the .rio accessor on xarray objects
import warnings
warnings.filterwarnings('ignore')
print("β
Libraries imported successfully")β
Libraries imported successfullyWe will start by connecting to the EOPF STAC catalog and loading a Sentinel-2 L2A dataset with its native Zarr chunking configuration. We search for a cloud-free Sentinel-2 L2A scene over an area of interest, in this case Napoli, Italy.
# Connect to EOPF STAC API
eopf_stac_api_root = "https://stac.core.eopf.eodc.eu/"
catalog = Client.open(url=eopf_stac_api_root)
# Search for Sentinel-2 L2A over Napoli during summer 2025
search_results = catalog.search(
collections='sentinel-2-l2a',
bbox=(14.268124, 40.835933, 14.433823, 40.898202), # Napoli AOI
sortby=[{"field": "datetime", "direction": "desc"}],
max_items=1,
filter={
"op": "and",
"args": [
{
"op": "lte",
"args": [
{"property": "eo:cloud_cover"},
5 # eo:cloud_cover <= 5%
]
}
]
},
filter_lang='cql2-json'
)
# Get first item
stac_items = list(search_results.items())
if not stac_items:
raise ValueError("No items found. Try adjusting the search parameters.")
item = stac_items[0]
print(f"π¦ Found item: {item.id}")
print(f"π
Acquisition date: {item.properties.get('datetime', 'N/A')}")π¦ Found item: S2C_MSIL2A_20260411T095031_N0512_R079_T33TVF_20260411T132016
π
Acquisition date: 2026-04-11T09:50:31.025000ZWeβll use xarrayβs open_datatree() to access the hierarchical EOPF Zarr structure directly from cloud storage.
# Get Zarr URL from STAC item
item_assets = item.get_assets(media_type=MediaType.ZARR)
zarr_url = item_assets['product'].href
zarr_url = zarr_url.replace(':443/', '/')
print(f"π Zarr URL: {zarr_url}")
# Open with xarray DataTree
dt = xr.open_datatree(
zarr_url,
engine="zarr",
chunks={} # Use existing Zarr chunks
)
print("\nπ Available groups in DataTree:")
for group in sorted(dt.groups):
if dt[group].ds.data_vars:
print(f" {group}: {list(dt[group].ds.data_vars.keys())}")π Zarr URL: https://objects.eodc.eu/e05ab01a9d56408d82ac32d69a5aae2a:202604-s02msil2a-eu/11/products/cpm_v270/S2C_MSIL2A_20260411T095031_N0512_R079_T33TVF_20260411T132016.zarr
π Available groups in DataTree:
/conditions/geometry: ['mean_sun_angles', 'mean_viewing_incidence_angles', 'sun_angles', 'viewing_incidence_angles']
/conditions/mask/detector_footprint/r10m: ['b02', 'b03', 'b04', 'b08']
/conditions/mask/detector_footprint/r20m: ['b05', 'b06', 'b07', 'b11', 'b12', 'b8a']
/conditions/mask/detector_footprint/r60m: ['b01', 'b09', 'b10']
/conditions/mask/l1c_classification/r60m: ['b00']
/conditions/mask/l2a_classification/r20m: ['scl']
/conditions/mask/l2a_classification/r60m: ['scl']
/conditions/meteorology/cams: ['aod1240', 'aod469', 'aod550', 'aod670', 'aod865', 'bcaod550', 'duaod550', 'omaod550', 'ssaod550', 'suaod550', 'z']
/conditions/meteorology/ecmwf: ['msl', 'r', 'tco3', 'tcwv', 'u10', 'v10']
/measurements/reflectance/r10m: ['b02', 'b03', 'b04', 'b08']
/measurements/reflectance/r20m: ['b01', 'b02', 'b03', 'b04', 'b05', 'b06', 'b07', 'b11', 'b12', 'b8a']
/measurements/reflectance/r60m: ['b01', 'b02', 'b03', 'b04', 'b05', 'b06', 'b07', 'b09', 'b11', 'b12', 'b8a']
/quality/atmosphere/r10m: ['aot', 'wvp']
/quality/atmosphere/r20m: ['aot', 'wvp']
/quality/atmosphere/r60m: ['aot', 'wvp']
/quality/mask/r10m: ['b02', 'b03', 'b04', 'b08']
/quality/mask/r20m: ['b05', 'b06', 'b07', 'b11', 'b12', 'b8a']
/quality/mask/r60m: ['b01', 'b09', 'b10']
/quality/probability/r20m: ['cld', 'snw']Sentinel-2 L2A provides bands at three spatial resolutions: - 10m: B02 (Blue), B03 (Green), B04 (Red), B08 (NIR) - 20m: B05, B06, B07, B8A, B11, B12 - 60m: B01, B09, B10
Letβs examine the 10m resolution group, which weβll use for RGB visualization.
# Access 10m resolution bands
ds_10m = dt['/measurements/reflectance/r10m'].to_dataset()
print("\nπ 10m Resolution Dataset:")
print(f"Dimensions: {dict(ds_10m.dims)}")
print(f"Bands: {list(ds_10m.data_vars.keys())}")
print(f"Coordinates: {list(ds_10m.coords.keys())}")
# Check chunking configuration
if 'b04' in ds_10m:
chunks = ds_10m['b04'].chunks
print(f"\nπ¦ Current chunk configuration: {chunks}")
print(f" Y-axis chunks: {chunks[0] if len(chunks) > 0 else 'N/A'}")
print(f" X-axis chunks: {chunks[1] if len(chunks) > 1 else 'N/A'}")
π 10m Resolution Dataset:
Dimensions: {'y': 10980, 'x': 10980}
Bands: ['b02', 'b03', 'b04', 'b08']
Coordinates: ['x', 'y']
π¦ Current chunk configuration: ((2048, 2048, 2048, 2048, 2048, 740), (2048, 2048, 2048, 2048, 2048, 740))
Y-axis chunks: (2048, 2048, 2048, 2048, 2048, 740)
X-axis chunks: (2048, 2048, 2048, 2048, 2048, 740)EOPF Zarr stores CRS information in the root DataTree attributes under other_metadata.horizontal_CRS_code. We need to extract this and set it using rioxarray for rio-tiler compatibility.
# Extract CRS from EOPF metadata (following geozarr.py approach)
epsg_code_full = dt.attrs.get("other_metadata", {}).get("horizontal_CRS_code", None)
# If CRS not in metadata, infer from coordinates
if epsg_code_full is None:
# Check if coordinates look like UTM (values >> 180 indicate meters, not degrees)
x_coords = ds_10m.coords['x'].values
y_coords = ds_10m.coords['y'].values
if x_coords.max() > 180 or y_coords.max() > 180:
# Coordinates are in meters - infer UTM zone from x coordinate
# For Sentinel-2 over Italy, typical zones are 32N (west) or 33N (east)
# Zone 33N covers Naples area
print("β οΈ CRS not found in metadata. Inferring from coordinates...")
print(f" X range: [{x_coords.min():.0f}, {x_coords.max():.0f}]")
print(f" Y range: [{y_coords.min():.0f}, {y_coords.max():.0f}]")
# For coordinates around 400000-500000m, this is UTM zone 33N
if 300000 < x_coords.mean() < 600000 and 4000000 < y_coords.mean() < 5000000:
epsg_code_full = "EPSG:32633" # UTM zone 33N (covers Naples area)
print(f" Inferred: {epsg_code_full} (UTM zone 33N)")
else:
epsg_code_full = "EPSG:32633" # Default to UTM 33N for Italy
print(f" Defaulting to: {epsg_code_full}")
else:
epsg_code_full = "EPSG:4326" # WGS84 lat/lon
print(" Coordinates look like lat/lon degrees - using EPSG:4326")
epsg_code = epsg_code_full.split(":")[-1] # Extract numeric part (e.g., "32633" from "EPSG:32633")
print(f"\nπ CRS to use: EPSG:{epsg_code}")
print(f" Full code: {epsg_code_full}")
# Set CRS on the dataset using rioxarray
ds_10m.rio.write_crs(f"epsg:{epsg_code}", inplace=True)
print(f"\nβ
CRS set successfully on dataset")β οΈ CRS not found in metadata. Inferring from coordinates...
X range: [399965, 509755]
Y range: [4490225, 4600015]
Inferred: EPSG:32633 (UTM zone 33N)
π CRS to use: EPSG:32633
Full code: EPSG:32633
β
CRS set successfully on datasetNow we can access CRS, bounds, and transform information through rioxarray. This is essential for rio-tiler integration.
# Verify CRS and geospatial metadata
crs = ds_10m.rio.crs
bounds = ds_10m.rio.bounds()
transform = ds_10m.rio.transform()
print(f"\nπ Geospatial Metadata:")
print(f" CRS: {crs}")
print(f" EPSG Code: {crs.to_epsg()}")
print(f" Bounds (left, bottom, right, top): {bounds}")
print(f" Transform: {transform}")
print(f"\n Width: {ds_10m.dims['x']} pixels")
print(f" Height: {ds_10m.dims['y']} pixels")
π Geospatial Metadata:
CRS: EPSG:32633
EPSG Code: 32633
Bounds (left, bottom, right, top): (399960.0, 4490220.0, 509760.0, 4600020.0)
Transform: | 10.00, 0.00, 399960.00|
| 0.00,-10.00, 4600020.00|
| 0.00, 0.00, 1.00|
Width: 10980 pixels
Height: 10980 pixelsOnce we have accesed the data we are interested we are able to integrate rio-tiler to generate map tiles from our Zarr dataset.
Rio-tilerβs XarrayReader works with DataArrays, not Datasets. We need to stack our RGB bands into a single DataArray with a βbandβ dimension.
# Verify dataset is ready
if ds_10m.rio.crs is None:
raise ValueError("CRS not set! Check previous steps.")
# Stack RGB bands into a single DataArray for rio-tiler
# XarrayReader requires a DataArray, not a Dataset
rgb_bands = xr.concat(
[ds_10m['b04'], ds_10m['b03'], ds_10m['b02']], # Red, Green, Blue
dim='band'
).assign_coords(band=['red', 'green', 'blue'])
# Preserve CRS and geospatial transform information
# This is critical for rio-tiler to correctly interpret the coordinate system
rgb_bands = rgb_bands.rio.write_crs(ds_10m.rio.crs)
rgb_bands = rgb_bands.rio.write_transform(ds_10m.rio.transform())
print("β
DataArray prepared for rio-tiler")
print(f" CRS: {rgb_bands.rio.crs}")
print(f" Transform: {rgb_bands.rio.transform()}")
print(f" Shape: {rgb_bands.shape} (band, y, x)")
print(f" Bands: {list(rgb_bands.coords['band'].values)}")β
DataArray prepared for rio-tiler
CRS: EPSG:32633
Transform: | 10.00, 0.00, 399960.00|
| 0.00,-10.00, 4600020.00|
| 0.00, 0.00, 1.00|
Shape: (3, 10980, 10980) (band, y, x)
Bands: [np.str_('red'), np.str_('green'), np.str_('blue')]Weβll create a Web Mercator tile (zoom 12) showing true color composite (B04-Red, B03-Green, B02-Blue).
# Create RGB composite using XarrayReader with our stacked DataArray
with XarrayReader(rgb_bands) as src:
# Get dataset info
print(f"\nπ Dataset Info:")
print(f" CRS: {src.crs}")
print(f" Bounds (UTM): {src.bounds}")
# Transform bounds from UTM to WGS84 for tile calculation
bounds_wgs84 = transform_bounds(src.crs, 'EPSG:4326', *src.bounds)
print(f" Bounds (WGS84): {bounds_wgs84}")
# Get a tile at zoom level 12 for Napoli area
# Stretch reflectance to 0β255: one (min, max) per band. For Sentinel-2 L2A BOA,
# reflectance is often capped around 0.4 (40%) so bright surfaces don't saturate the display.
# .rescale() treats all values as valid; mask nodata before tiling if your data uses fill values.
tms_tile = src.tms.tile(14.23, 40.83, 12)
rgb_data = src.tile(tms_tile.x, tms_tile.y, 12, tilesize=512).rescale(((0, 0.4),))
print(f"\nβ
RGB tile generated:")
print(f" CRS: {rgb_data.crs}")
print(f" Bounds: {rgb_data.bounds}")
print(f" Shape: {rgb_data.data.shape}")
print(f" Data type: {rgb_data.data.dtype}")
π Dataset Info:
CRS: EPSG:32633
Bounds (UTM): (399960.0, 4490220.0, 509760.0, 4600020.0)
Bounds (WGS84): (13.800550898371187, 40.55670691139613, 15.117031634388356, 41.55184463910605)
β
RGB tile generated:
CRS: EPSG:3857
Bounds: BoundingBox(left=1575214.278900914, bottom=4980025.266835803, right=1584998.2185214162, top=4989809.206456305)
Shape: (3, 512, 512)

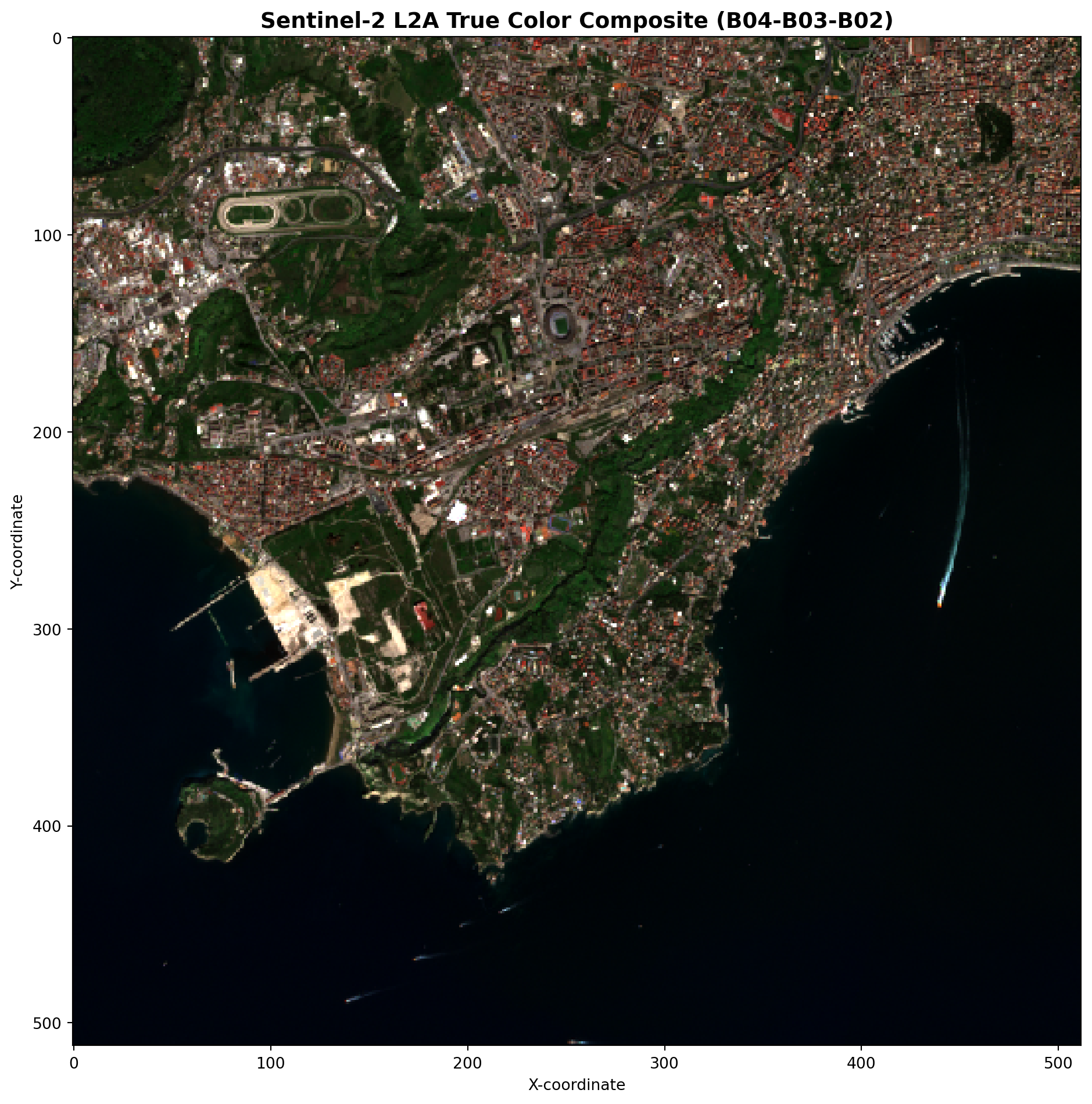

Data type: uint8Letβs visualize the RGB composite with histogram stretching for better contrast.
plt.figure(figsize=(10, 10))
plt.imshow(rgb_data.array.transpose(1, 2, 0))
plt.title('Sentinel-2 L2A True Color Composite (B04-B03-B02)', fontsize=14, fontweight='bold')
plt.xlabel('X-coordinate')
plt.ylabel('Y-coordinate')
plt.grid(False)
plt.tight_layout()
plt.show()

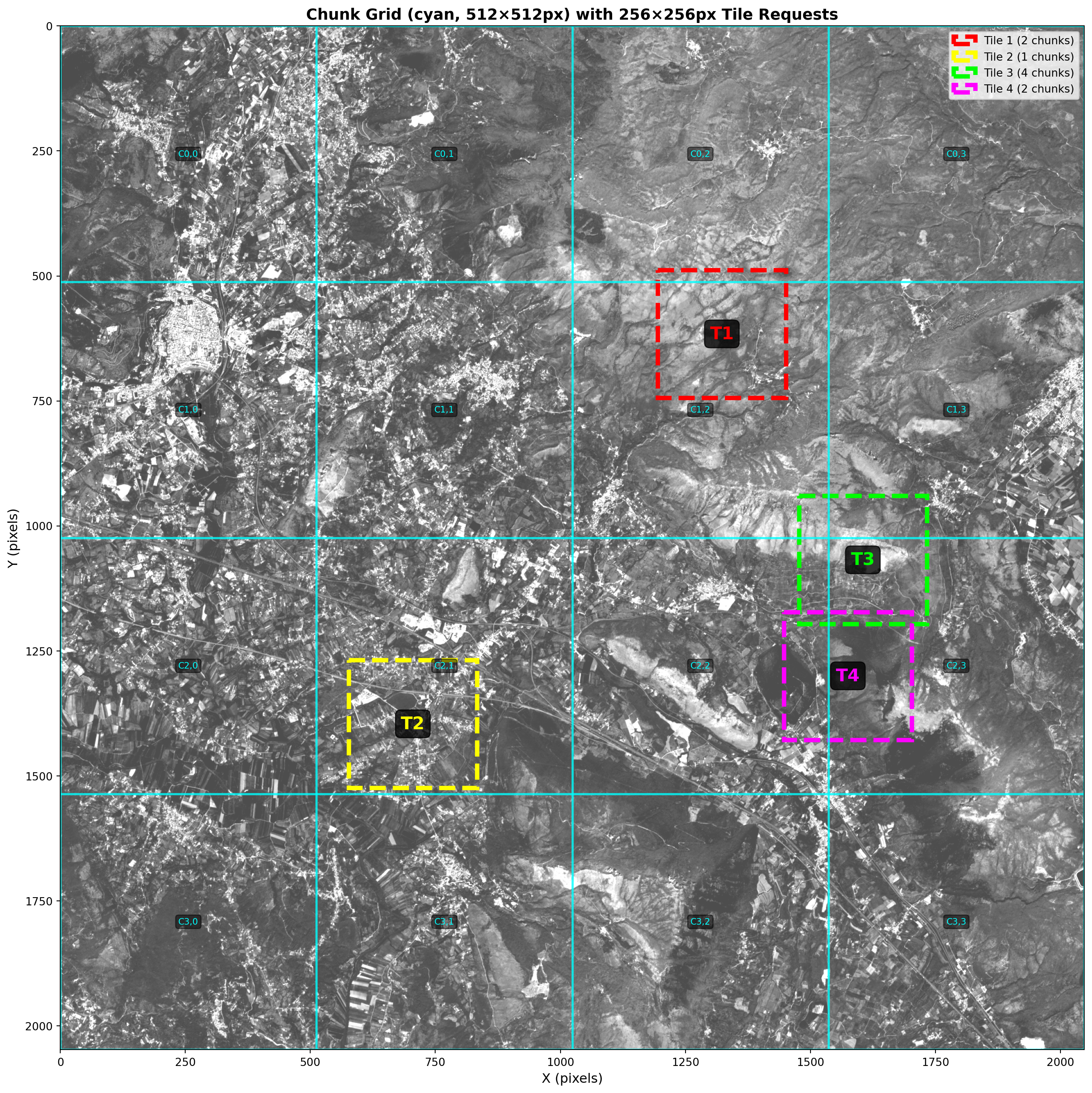

Letβs examine how Zarr chunks relate to tile generation and performance.
The key to understanding chunk performance is seeing where tiles land relative to chunk boundaries. For this, we can create a visualization to show the chunk grid overlaid on the actual data.
# Create a smaller test dataset for visualization
# First create a subset, then rechunk it to show visible chunk grid
subset_size = 2048
ds_subset_original = ds_10m.isel(x=slice(0, subset_size), y=slice(0, subset_size))
print(f"π¦ Original Subset:")
print(f" Size: {subset_size}Γ{subset_size} pixels")
print(f" Original chunks: {ds_subset_original['b04'].chunks}")
# Rechunk to a size that will create a visible grid (512Γ512)
ds_subset = ds_subset_original.chunk({'y': 512, 'x': 512})
subset_bands = list(ds_subset.data_vars)
print(f"\nπ¦ Rechunked Test Dataset:")
print(f" Size: {subset_size}Γ{subset_size} pixels")
print(f" Variables (all bands loaded on .load() below): {subset_bands}")
print(f" New chunks: {ds_subset['b04'].chunks}")
print(f" Bounds: {ds_subset.rio.bounds()}")
import time
t_load = time.perf_counter()
ds_subset = ds_subset.load()
load_elapsed = time.perf_counter() - t_load
print(
f"\nβ±οΈ Loaded subset into memory in {load_elapsed:.2f}s "
f"(~{ds_subset.nbytes / (1024**2):.1f} MB total across all variables above) β one remote read for Section 3β4"
)
# Restore chunk layout: .load() uses numpy under the hood (chunks=None), but
# zarr_tiling_utils and the benchmark need explicit chunks over in-memory data.
ds_subset = ds_subset.chunk({'y': 512, 'x': 512})
# Get chunk information
if ds_subset['b04'].chunks:
chunk_y = ds_subset['b04'].chunks[0][0]
chunk_x = ds_subset['b04'].chunks[1][0]
n_chunks_y = len(ds_subset['b04'].chunks[0])
n_chunks_x = len(ds_subset['b04'].chunks[1])
print(f"\n𧩠Chunk Structure:")
print(f" Chunk size: {chunk_y}Γ{chunk_x} pixels")
print(f" Number of chunks: {n_chunks_y}Γ{n_chunks_x} = {n_chunks_y * n_chunks_x} total")
print(f" Chunk size per band: ~{(chunk_y * chunk_x * 2) / (1024**2):.2f} MB")
print("\nNote: We rechunked to 512Γ512 to create a visible grid for demonstration.")π¦ Original Subset:
Size: 2048Γ2048 pixels
Original chunks: ((2048,), (2048,))
π¦ Rechunked Test Dataset:
Size: 2048Γ2048 pixels
Variables (all bands loaded on .load() below): ['b02', 'b03', 'b04', 'b08']
New chunks: ((512, 512, 512, 512), (512, 512, 512, 512))
Bounds: (399960.0, 4579540.0, 420440.0, 4600020.0)
β±οΈ Loaded subset into memory in 1.03s (~128.0 MB total across all variables above) β one remote read for Section 3β4
𧩠Chunk Structure:
Chunk size: 512Γ512 pixels
Number of chunks: 4Γ4 = 16 total
Chunk size per band: ~0.50 MB
Note: We rechunked to 512Γ512 to create a visible grid for demonstration.from zarr_tiling_utils import visualize_chunks_and_tiles
# Visualize with test dataset (now properly rechunked to 512Γ512)
tile_info = visualize_chunks_and_tiles(ds_subset, tile_size=256, num_sample_tiles=4)π Using ACTUAL chunk dimensions from dataset:
Chunk size: 512Γ512 pixels (from ds['b04'].chunks)
Dataset size: 2048Γ2048 pixels
Tile size for demo: 256Γ256 pixels
π Tile-to-Chunk Mapping:
Tile Chunks Accessed Chunk Range
============================================================
T1 2 Y:0-1, X:2-2
T2 1 Y:2-2, X:1-1
T3 4 Y:1-2, X:2-3
T4 2 Y:2-2, X:2-3By creating datasets with different chunking strategies, we can compare among different tile access patterns. We assume the requested tiles CRS are aligned with the dataset CRS.
Weβll test the following scenarios: 1. Aligned: Chunks match tile size (256x256) 2. Larger: Chunks much larger than tiles (1024x1024) 3. Misaligned: Chunks donβt align with tiles (300x300) 4. Misaligned Large: Large chunks that donβt align with tiles (700x700) 5. Smaller: Chunks smaller than tiles (128x128) 6. Misaligned Small: Very small chunks that donβt align with tiles (100x100)
# Six chunking strategies on the in-memory subset (512Γ512 base grid)
strategies = {
'Aligned (256x256)': {'chunks': {'y': 256, 'x': 256}},
'Larger (1024x1024)': {'chunks': {'y': 1024, 'x': 1024}},
'Misaligned (300x300)': {'chunks': {'y': 300, 'x': 300}},
'Misaligned (700x700)': {'chunks': {'y': 700, 'x': 700}},
'Smaller (128x128)': {'chunks': {'y': 128, 'x': 128}},
'Misaligned Small (100x100)': {'chunks': {'y': 100, 'x': 100}}
}
# Rechunk per strategy (underlying arrays are already loaded)
ds_variants = {}
for name, config in strategies.items():
ds_rechunked = ds_subset.chunk(config['chunks'])
ds_variants[name] = ds_rechunked
chunk_info = ds_rechunked['b04'].chunks
print(f"{name}:")
print(f" Chunks: {chunk_info[0][0]}x{chunk_info[1][0]}")
print(f" Number of chunks: {len(chunk_info[0])}Γ{len(chunk_info[1])} = {len(chunk_info[0]) * len(chunk_info[1])}")
print()Aligned (256x256):
Chunks: 256x256
Number of chunks: 8Γ8 = 64
Larger (1024x1024):
Chunks: 1024x1024
Number of chunks: 2Γ2 = 4
Misaligned (300x300):
Chunks: 300x300
Number of chunks: 7Γ7 = 49
Misaligned (700x700):
Chunks: 700x700
Number of chunks: 3Γ3 = 9
Smaller (128x128):
Chunks: 128x128
Number of chunks: 16Γ16 = 256
Misaligned Small (100x100):
Chunks: 100x100
Number of chunks: 21Γ21 = 441

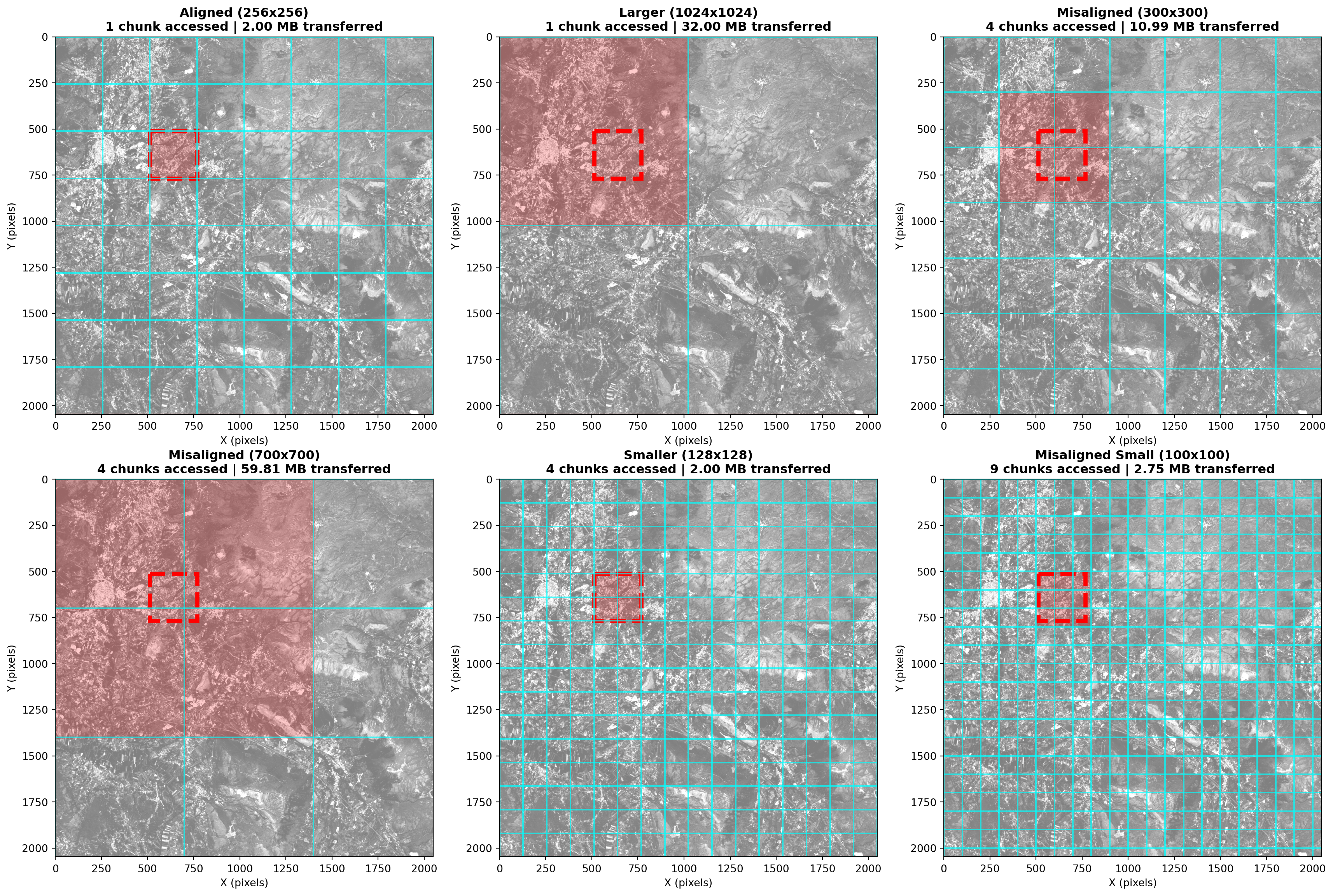

Letβs visualize how a single tile request maps to chunks in each strategy:
from zarr_tiling_utils import compare_chunking_strategies
results = compare_chunking_strategies(ds_variants, tile_size=256, tile_x=512, tile_y=512)
π― Chunk Access and Data Transfer Comparison for 256Γ256px Tile:
====================================================================================================
Strategy Chunk Size Chunks Tile Data Transferred Overhead Efficiency
----------------------------------------------------------------------------------------------------
Aligned (256x256) 256Γ256 1 2.00 MB 2.00 MB 1.00x β
Optimal
Larger (1024x1024) 1024Γ1024 1 2.00 MB 32.00 MB 16.00x β High overhead
Misaligned (300x300) 300Γ300 4 2.00 MB 10.99 MB 5.49x β οΈ Acceptable
Misaligned (700x700) 700Γ700 4 2.00 MB 59.81 MB 29.91x β High overhead
Smaller (128x128) 128Γ128 4 2.00 MB 2.00 MB 1.00x β
Good
Misaligned Small (100x100) 100Γ100 9 2.00 MB 2.75 MB 1.37x β οΈ Many requests
====================================================================================================
π‘ Interpretation:
β’ Tile Data: Actual data needed for the 256Γ256px tile
β’ Transferred: Total data that must be read from storage (full chunks)
β’ Overhead: Ratio of transferred/needed (lower is better, 1.0x is perfect)
Efficiency considers BOTH chunk count (HTTP requests) AND data overhead:
β’ β
Optimal: 1 chunk + low overhead (β€2x)
β’ β
Good: 2-4 chunks + low overhead (β€2x)
β’ β οΈ Acceptable: Trade-offs between chunk count and overhead
β’ β οΈ Many requests: Many small chunks but minimal wasted data
β’ β High overhead: Reading >10x more data than needed
β’ β Inefficient: Poor performance on both metricsWe measure how long rio-tiler takes to serve one tile for each chunking strategy using the real XarrayReader.tile() codepath.
The subset above is already loaded into memory, so these timings reflect chunk layout vs. the tile window (slicing and rio-tiler resampling), not repeated HTTPS range reads from the Zarr store. Remote access costs are represented by the one-time load and by earlier cells that open the dataset.
from rasterio.warp import transform_bounds
from zarr_tiling_utils import benchmark_rio_tiler
# Stack RGB for a test DataArray to find tile coordinates
test_da = xr.concat(
[ds_subset['b04'], ds_subset['b03'], ds_subset['b02']], dim='band'
).assign_coords(band=['red', 'green', 'blue']).rio.write_crs(ds_10m.rio.crs)
with XarrayReader(test_da) as src:
# Transform bounds from UTM to WGS84 (EPSG:4326) for tile calculation
bounds_wgs84 = transform_bounds(src.crs, 'EPSG:4326', *src.bounds)
center_lng = (bounds_wgs84[0] + bounds_wgs84[2]) / 2
center_lat = (bounds_wgs84[1] + bounds_wgs84[3]) / 2
tms_tile = src.tms.tile(center_lng, center_lat, 14)
tile_x, tile_y, zoom = tms_tile.x, tms_tile.y, 14
print(f"π― Benchmark tile: x={tile_x}, y={tile_y}, z={zoom}")
# Benchmark each chunking strategy
results = {}
for name, ds_var in ds_variants.items():
da = xr.concat(
[ds_var['b04'], ds_var['b03'], ds_var['b02']], dim='band'
).assign_coords(band=['red', 'green', 'blue']).rio.write_crs(ds_10m.rio.crs)
times = benchmark_rio_tiler(da, tile_x, tile_y, zoom, tilesize=256, n_warm=1, n_iter=5)
results[name] = times
print(f"{name:30s} {np.median(times)*1000:7.1f} ms (median of {len(times)} runs)")π― Benchmark tile: x=8825, y=6115, z=14
Aligned (256x256) 27.3 ms (median of 5 runs)
Larger (1024x1024) 34.3 ms (median of 5 runs)
Misaligned (300x300) 27.8 ms (median of 5 runs)
Misaligned (700x700) 27.3 ms (median of 5 runs)
Smaller (128x128) 31.5 ms (median of 5 runs)

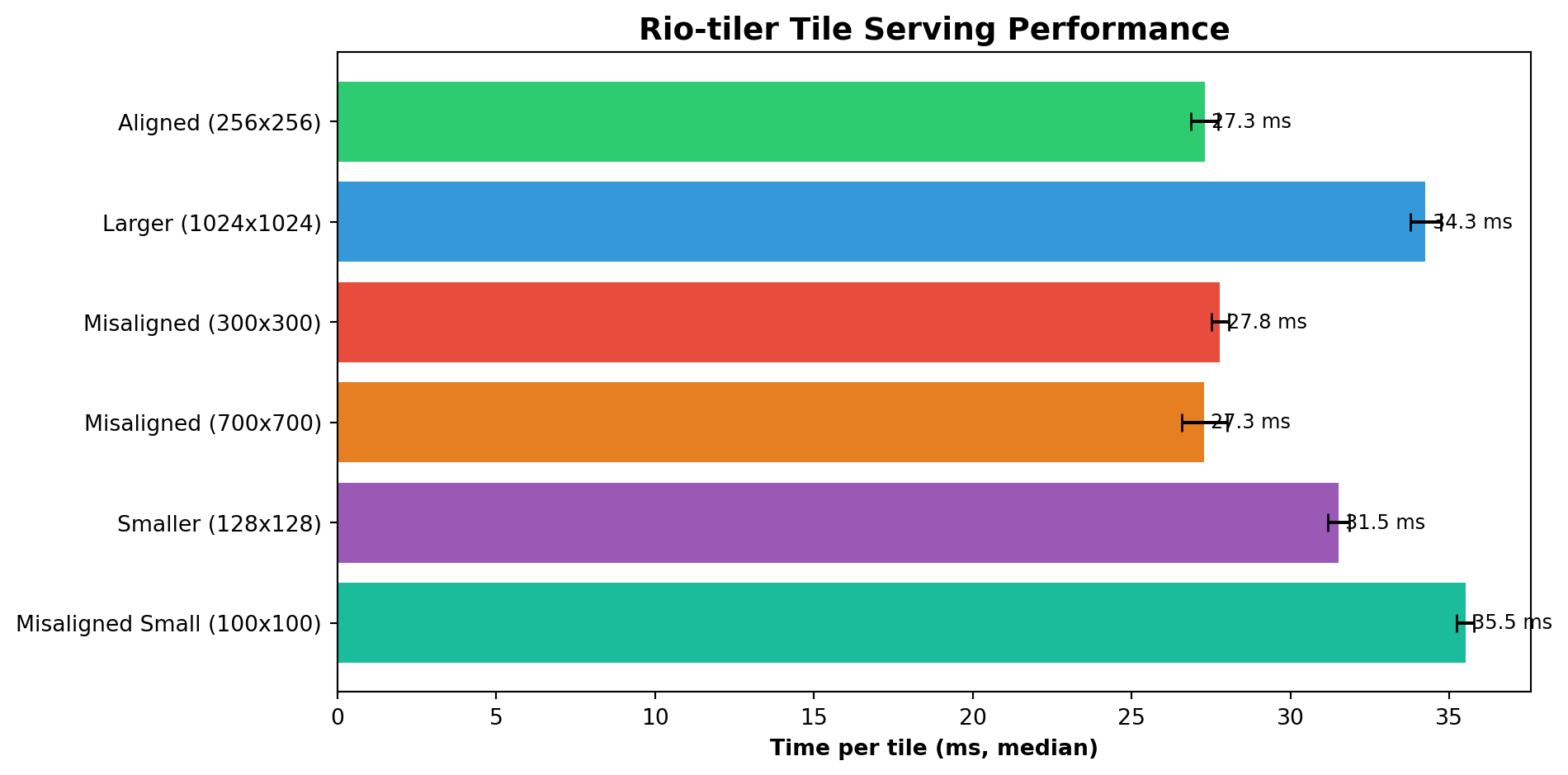

Misaligned Small (100x100) 35.5 ms (median of 5 runs)# Plot benchmark results
names = list(results.keys())
medians = [np.median(t) * 1000 for t in results.values()]
stds = [np.std(t) * 1000 for t in results.values()]
fig, ax = plt.subplots(figsize=(10, 5))
colors = ['#2ecc71', '#3498db', '#e74c3c', '#e67e22', '#9b59b6', '#1abc9c']
bars = ax.barh(names, medians, xerr=stds, color=colors, capsize=4)
ax.set_xlabel('Time per tile (ms, median)', fontweight='bold')
ax.set_title('Rio-tiler Tile Serving Performance', fontweight='bold', fontsize=14)
ax.invert_yaxis()
for bar, m in zip(bars, medians):
ax.text(bar.get_width() + max(stds)*0.3, bar.get_y() + bar.get_height()/2,
f'{m:.1f} ms', va='center', fontsize=9)
plt.tight_layout()
plt.show()
# Summary table
baseline = np.median(results[names[0]])
print(f"{'Strategy':30s} {'Median (ms)':>12s} {'Std (ms)':>10s} {'vs Baseline':>12s}")
print('β' * 70)
for name, times in results.items():
med, s = np.median(times) * 1000, np.std(times) * 1000
print(f"{name:30s} {med:12.1f} {s:10.1f} {np.median(times)/baseline:11.2f}x")Strategy Median (ms) Std (ms) vs Baseline
ββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ
Aligned (256x256) 27.3 0.4 1.00x
Larger (1024x1024) 34.3 0.5 1.25x
Misaligned (300x300) 27.8 0.3 1.02x
Misaligned (700x700) 27.3 0.7 1.00x
Smaller (128x128) 31.5 0.3 1.15x
Misaligned Small (100x100) 35.5 0.3 1.30xNow that we have walked through rio-tilerβs integration, the following exercises will help you explore further this tools applictaion!
Throughout this notebook, we have explored the intricate process of optimizing geospatial data for web-based visualization.
We began by extracting the Coordinate Reference Systems (CRS) from EOPF metadata and ensure full compatibility with rioxarray. Once the spatial parameters were set, we moved into data preparation, using xr.concat() to stack individual bands into DataArrays specifically formatted for rio-tiler. This preparation paved the way for the generation of dynamic RGB color map tiles directly from Sentinel-2 imagery.
Beyond simple visualization, we pictured the spatial relationships between Zarr chunks and incoming tile requests to better understand how data is accessed under the hood. By comparing various chunking strategies, we observed firsthand how data layout significantly influences access patterns. To wrap up, we benchmarked rio-tilerβs tile serving capabilities using an in-memory subset; this approach ensured that our timing results focused strictly on the efficiency of different chunk layouts rather than the variability of cloud fetch speeds.
# Extract CRS from EOPF metadata
epsg_code = dt.attrs.get("other_metadata", {}).get("horizontal_CRS_code", "EPSG:4326")
ds.rio.write_crs(epsg_code, inplace=True)
# Stack bands for rio-tiler
rgb = xr.concat([ds['b04'], ds['b03'], ds['b02']], dim='band')
rgb = rgb.assign_coords(band=['red', 'green', 'blue'])
rgb = rgb.rio.write_crs(ds.rio.crs)
# Generate tile
with XarrayReader(rgb) as src:
tile = src.tile(x, y, z, tilesize=256)Completed in approximately 15-20 minutes β±οΈ
In the next notebook, we will explore tools developed in R for processing and integrating the new EOPF Zarr format in the current EO workflows the community is interested in!.
